Pi3+Official Case, Raspberry Pi 3 B with Official Raspberry Pi White Case

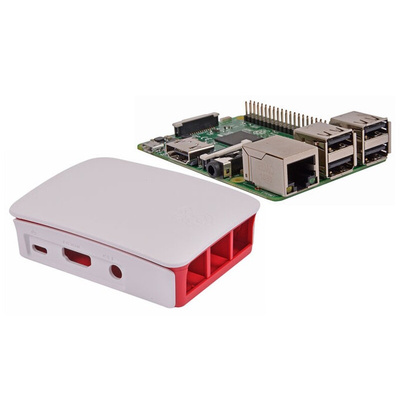

Raspberry Pi 3 B Bundle (Red/White Case and & Raspberry Pi 3 B)

What’s included?
1 x Raspberry Pi 3 Model B Board
1 x Official Red & White Case

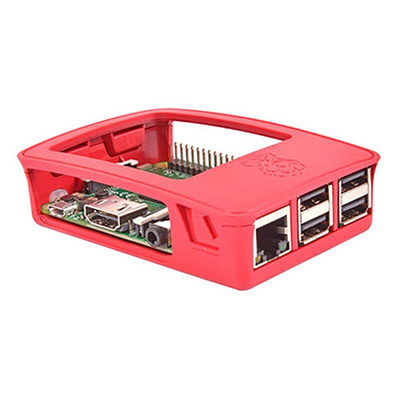

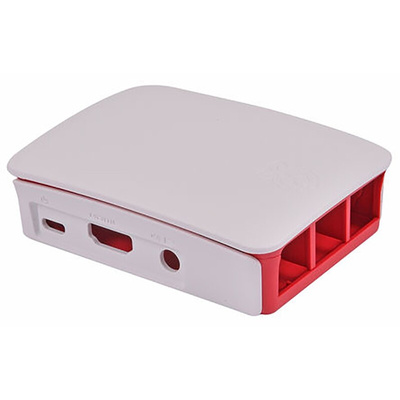

The Case
The Official Raspberry Pi cases are designed to protect the Raspberry Pi board. This red and white case snaps together around the Pi board and features all the relevant cut-outs to access the board still.

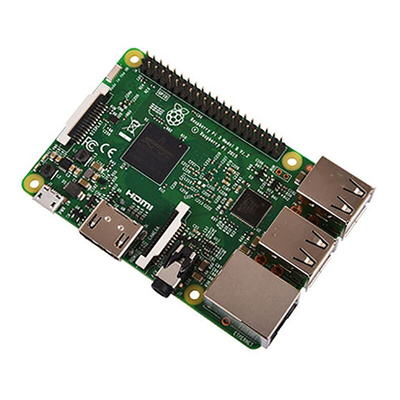

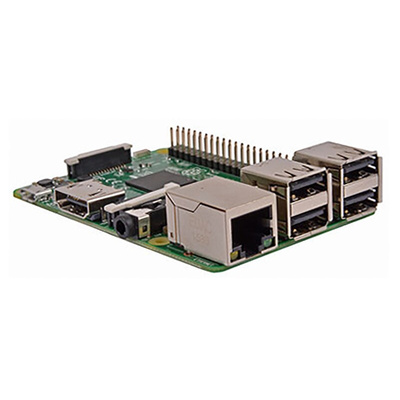

Raspberry Pi 3 Model B
The Raspberry Pi 3 Model B is the first member of the third generation Raspberry Pi family. It follows on from the Raspberry Pi 2 Model B boards and came before the Raspberry Pi 3 Model B+. The Raspberry Pi 3 Model B offers WLAN, Bluetooth and Bluetooth Low Energy (BLE). This connectivity is ideal for your Internet of Things (IoT) designs as you can communicate much easier with other supported devices.

What’s on-board?
Processor: Broadcom BCM2837 Quad core (ARM Cortex-A53) SoC
Memory: 1GB LPDDR2
Ethernet: 10/100 BaseT socket
USB: 4 x USB 2.0 ports
Connection: GPIO Header 40-pin
HDMI: Rev 1.3 and 1.4
Video: MIPI DSI display port, MIPI CSI camera port & 4 Pole stereo output and composite video port
Multimedia: Dual Core VideoCore IV® Multimedia Co-Processor. Provides Open GL ES 2.0, hardware-accelerated OpenVG, and 1080p30 H.264 high-profile decode. Capable of 1Gpixel/s, 1.5Gtexel/s or 24GFLOPs with texture filtering and DMA infrastructure
Storage: microSD card slot for loading operating system and data storage
Power: USB connector for 5.1V / 2.5A dc
