Toucscreen+Black Case, DesignSpark, Official Raspberry Pi Black Case with 7in Capacitive Touch Screen

Raspberry Pi LCD Touch Screen Bundle (Touch Screen & Black Case)

This Bundle consists of Raspberry Pi LCD Touch Screen (7 Inch) and Raspberry Pi LCD Touch Screen Black Case.

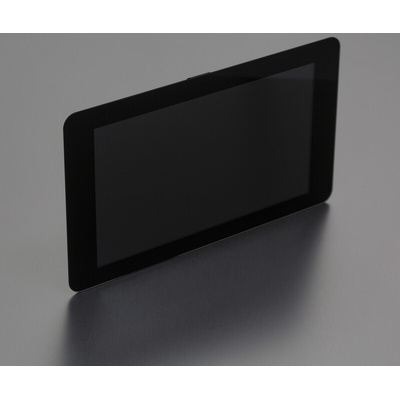

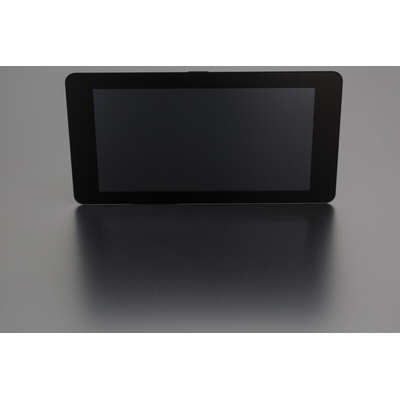

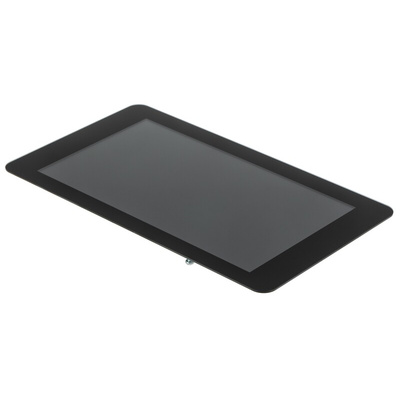

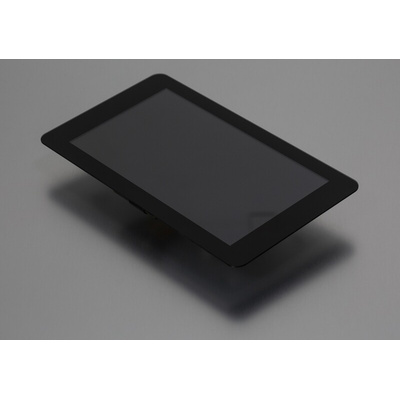

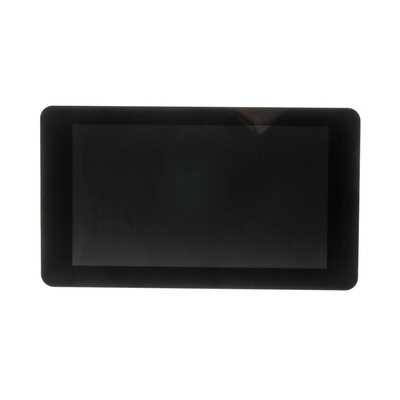

Raspberry Pi LCD Touch Screen — 7 inch
The Raspberry Pi has its own official LCD Touch Screen. A few years in the making, the Raspberry Pi Foundation wanted you to have the perfect display screen for your Pi without compromise.

Features & Benefits of the Pi LCD Touch Screen
• Multi-touch capacitive touch screen — supports up to 10 finger touches
• 7 inch display
• 800 x 480 pixel resolution at 60 frames per second (fps)
• 24-bit RGB colour
• 70° viewing angle
• Only two connections required
• Flexible power supply
• No electronic interference
• Full Raspbian OS functionality without a keyboard and mouse
• Kivy touch screen development software available — http://kivy.org/docs/installation/installation-rpi.html

LCD Touch Screen Contents
• LCD touch screen
• Adapter board
• DSI ribbon cable

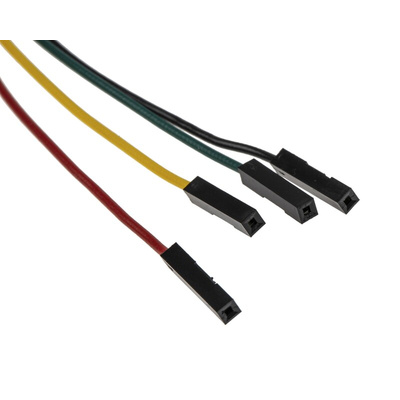

• 4 jumper wires
• Mounting hardware

Setting up your LCD Touch Screen

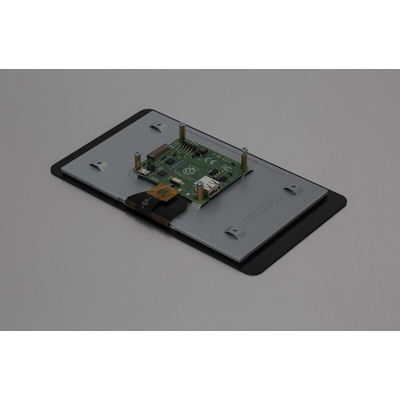

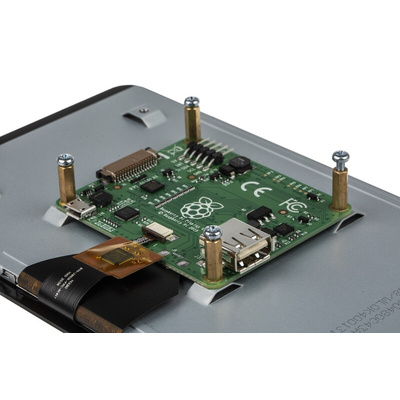

Set up is quick and easy. The adapter board and your Pi are mounted to the rear of the LCD using the basic fixings supplied. The DSI ribbon cable provides the display interface between the Pi and the LCD assembly.

Power Supply Options for your LCD Touch Screen
• Separate supply — Power the display board separately to the Pi using a uUSB power supply of least 500 mA
• Raspberry Pi 2.5 A power supply — Connect a Pi power supply (909-8135) to the display board. The board can then power the Pi via USB connection
• GPIO jumpers — Power the display board from the Pi using the supplied jumper wires

https://www.raspberrypi.org/blog/the-eagerly-awaited-raspberry-pi-display/

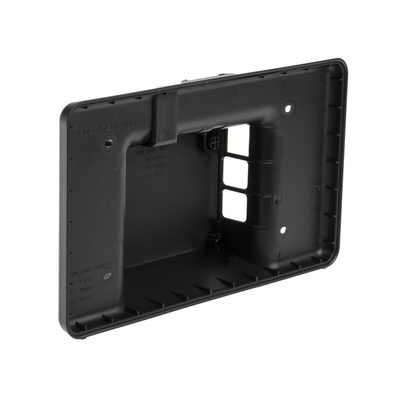

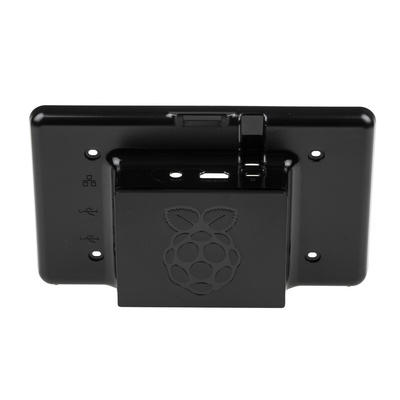

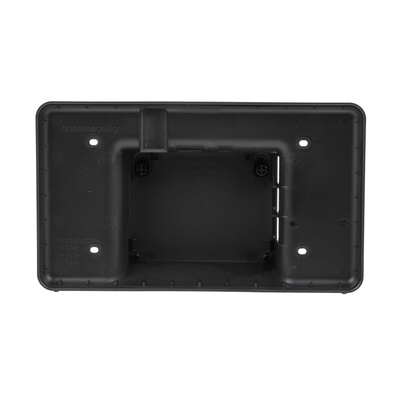

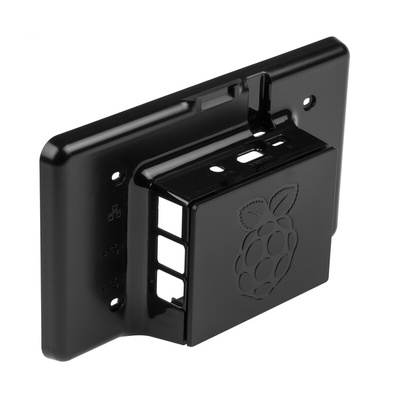

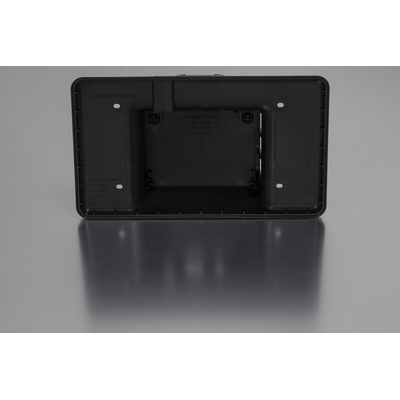

Raspberry Pi LCD Touch Screen Case
The Touch Screen cases from RS Pro are designed to house your Raspberry Pi board and the Raspberry Pi 7” LCD Touch Screen (899-7466).
Available in black, the case provides protection to the board and the display. The case also acts as a bezel to the display, improving its appearance while housing the board neatly behind it.

Features and Benefits
• Renders the touch screen and Pi board portable
• Cut-outs for all connections
• Camera board connector slot
• Wall mount features
• Four screw fixings supplied for attachment to the touch screen
• Easy clip rear cover to protect/access all internal connectors

Note

Raspberry Pi board is sold separately.

Note

PI4 Not compatible
