Roxburgh EMC 6A, 250 V ac Female, Male Free Standing IEC Filter PMF6 None Fuse, Фильтр

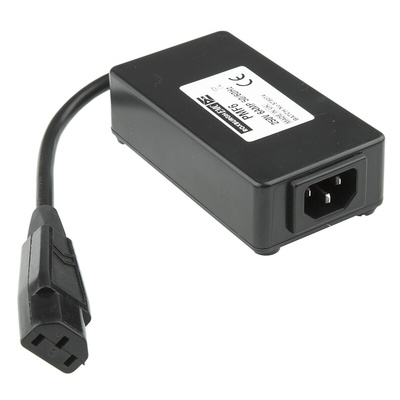

Roxburgh EMC IEC Inlet Filter

The Roxburgh EMC PMF6 6A free-standing IEC inlet filter is a high-performance device. It has a supply voltage rating of 250VAC. Its typical applications include computers and instrumentation which may be subject to high-levels of mains borne interference and voltage spikes. The operating frequency of this filter ranges between 50Hz and 60Hz.
Inlet plugs with filters:
IEC inlet plugs with integral mains filter are designed to filter mains borne interference where capacitors alone may prove inadequate. Connection is by 250 (1/4in) receptacles.

Features and Benefits

Filter network including earth line choke and across the line VDR
Ideally suited for using IEC 60320 C14 power leads
Operating temperature ranges between -25°C and 85°C

Certifications

IP40 rated

Inlet Plugs with Filters

IEC Inlet plugs with integral mains filter. Designed to filter mains borne interference where capacitors alone may prove inadequate.Connection by 250 ( 1/4 in) receptacles. (For insulating boots see typically RS stock no. 526-0724).,Voltage 250Vac max. Operating frequency 50/60Hz.

PMF6 Data Sheet
