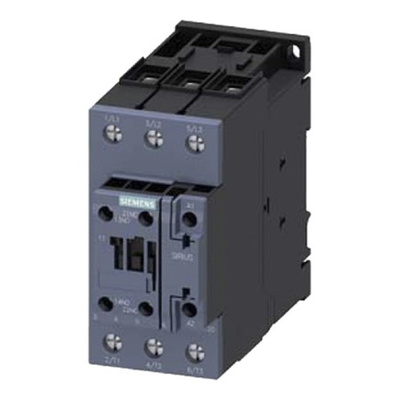

3RT2036-1AF00, Siemens 3RT2 Series Contactor, 110 V ac Coil, 3-Pole, 50 A, 22 kW, 3NO, 690 V ac, Контактор

Siemens Contactor, 690V AC Contact Voltage Rating, 2000m Maximum Altitude - SIRIUS Innovation 3RT2 - 3RT2036-1AF00

Need to rein in high current? Pick this contactor from Siemens to switch electric circuits on and off. It's a 3-pole contactor, so you can use it to switch three separate circuits, controlling the power supply to different types of loads. Thanks to a mechanical service life of 10 million switching cycles, this unit performs efficiently over long periods. A wide operating temperature range between -25°C and +60°C means it's suitable for tough industrial conditions. This component is commonly found in large-scale manufacturing to control power to heavy-plant machinery such as conveyors, mixers and cranes.

Features & Benefits

• IP20 rating indicates it's finger-safe and shielded from objects bigger than 12mm
• Coil voltage of 110V AC means it's widely compatible
• Screw terminals offer secure and speedy assembly
• Current rating of 50A makes it suitable for high-powered applications

Can I mount this contactor?

Yes, you can mount it easily by snapping it onto a standard 35mm DIN rail.

How large is this product?

It has compact dimensions of 114 (H) x 55 (W) x 130mm (D), so it's handy for narrow setups.

Datasheet

Basic Information

Siemens Sirius Migration

Sirius: Migrating From Classic to Innovation

Manual - Contactor S2

Environmental Product Declaration

Environmental Product Declaration - Overview

Siemens EcoTech label
