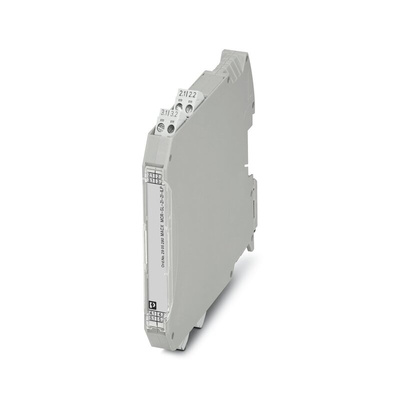

2905280, Phoenix Contact MACX MCR Series Signal Conditioner, Current Input, Current Output, <30.5V Supply, ATEX

MACX MCR Loop Powered Isolators

Phoenix Contact MACX MCR series loop powered isolators for the electrical isolation of analogue signals. Available as single or dual channel devices with active sensor technology and a supply voltage of 6 V dc to 30 V dc.

Phoenix Contact Signal Conditioner, Current Input and Output Type,

Scratching your head for a way to convert analogue signals into a useable format? This current-to-current signal conditioner from Phoenix Contact gets the job done. Simply connect the input from a sensor with a current up to 20mA, and the unit will provide an output that's suitable for process monitoring and control devices. Two-way electrical isolation prevents interference, reducing the chance of incorrect readings.
It's a passive isolator, so it gets its power from the transmission loop, saving you the bother of having to plug it into a power source. The spring-cage connection technology makes the unit simple to affix to a terminal block, or you can screw it in for extra security.
This conditioner has a wide operating temperature range of -40°C to +85°C, making it suitable for use in harsh industrial environments. As long as your hands are dry, it's touch-proof and safe to handle without risk of electric shocks.

Features & Benefits

• PA housing is hardwearing and abrasion-resistant for a long lifespan
• Compact dimensions of 99 (H) x 12.5 (W) x 114.5mm (D) for installation in tight spaces
• DIN rail mounting makes it simple to snap into place
