Schaffner 6A, 250 V ac Male Panel Mount IEC Filter 2 Pole FN284-6-06, Faston 2 Fuse, Фильтр

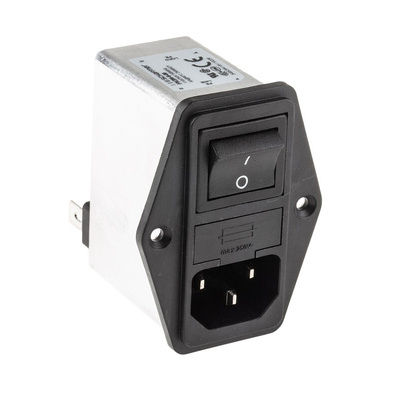

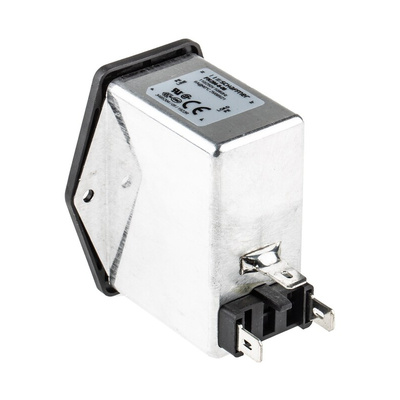

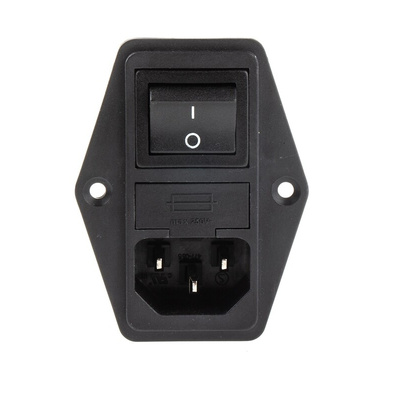

Schaffner Dual Fuse Inlet Filter

The Schaffner IEC inlet filter is a male type, dual fused, panel mount device with C14 IEC connector power entry module. It has a voltage rating is 250VAC with 6A high-performance current rating. The high conducted attenuation performance is based on chokes with high saturation resistance and excellent thermal behaviour. The operating frequency of this filter ranges between 50Hz and 400Hz.
Warning:
Neutral line must not be fused where it is referenced to the earth.

Features and Benefits

Convenient, highly-integrated module
Fuse drawer with easy access
Dual-pole rocker switch
Fast-On terminals
Maximum leakage current is 373μA
Operating temperature ranges between -25°C and +85°C
2-pole rocker switch
Weight 90g
IP 40 Rating

Applications

IEC filters are designed to protect circuits from electromagnetic interference and are used in power and electronic industries. They are commonly found in:
Electrical and electronic equipment
Medical equipment
Household equipment
Single-phase and switch-mode power supplies
Test and measurement equipment
Office equipment

Certifications

UL approved
CSA Certified
VDE
SEMKO
IP40 rated

Approvals

VDE; UL (Canada); CSA; SEV; SEMKO

SEMCO CENLEC ENEC Agreement Licence

E 64388_UL Report

FN280 Datasheet
