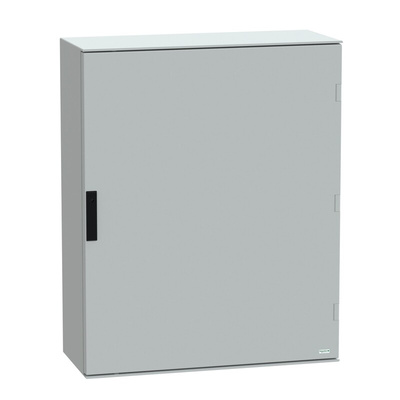

NSYPLM108G, Schneider Electric Thalassa PLM Series PET Wall Box, IP66, 1056 mm x 852 mm x 350mm, Настенный шкаф

Schneider Electric Wall Box, 1056 (H) x 350 (D) x 852mm (W) - Thalassa PLM Series - NSYPLM108G

Use this wall box from Schneider Electric to safeguard your sensitive equipment from tampering and damage. It has a 4-point double-bar lock for security and is made from fibreglass-reinforced polyester that's resistant to corrosion and impact, so you can rely on it for long-term performance. The enclosure has dimensions of 1056 (height) x 852 (width) x 350mm (depth), meaning it can be conveniently installed in tight spaces. A wide operating temperature ranging between -40°C and +85°C makes it suitable for harsh industrial conditions and both indoor and outdoor use.

Features & Benefits

• Door is removable for versatile installation to suit your design specifications
• IP66 rating indicates it's dust-proof and resistant to high-pressure water jets
• IK10 rating indicates it can resist impact energy of up to 20J
• Flame-retardant properties mean it won't contribute to a workplace fire

Applications

• Offices and commercial premises
• Chemical processing facilities
• Data centres

How do I mount this wall box?

This wall box is designed to be wall mounted with screws, which ensures it's securely attached to its mounting surface.

Note

Supplied without mounting plate

Approvals

UL.

Standards

IEC 62208, NEMA classification 13, NEMA classification 4X.

Supplied with
type":"Supplied with",

Body, plain door and a lock
