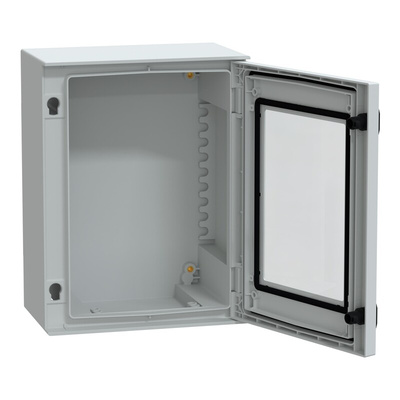

NSYPLM64TG, Schneider Electric Thalassa PLM Series PET Wall Box, IP66, Viewing Window, 647 mm x 436 mm x 250mm, Настенный шкаф

Schneider Electric Thalassa PLM Polyester (PET) Class II Fiberglass Reinforced Wall Box Enclosures.

Schneider Electric range of Thalassa PLM polyester (fibreglass reinforced) Monobloc wall mounting wall box enclosures are suitable for indoor or outdoor use. The lightweight wall boxes have double insulation (Class II) protection and can be used in a large temperature range (960°C withstanding).

Features and Benefits.

• Large 180° door opening


• IP66 rating meaning the enclosures are dust tight and give protection against powerful jets of water and heavy seas


• Impact resistance: IK10 for plain door version, - IK08 for the glazed door (monobloc).


• Self-extinguishing material and insulator


• 960 ºC test withstanding


• 8 dimensions from 310x215x160mm up to 1056x852x350mm.


• Bosses for fixation points are moulded, inserts included.


• 2 locks with double-bar insert or 1 lock system with 3 action points.


• Version with plain or glazed door.


• Version with metallic or Bakelite mounting plate.


• Suitable for quick installation of DIN rails.


• Lightweight gives an easy installation


• Reversibility for installation right or left door opening


• No electrical contact risk


• Resistance to harsh atmospheres (indoor and outdoor use).


• Halogen free.


• Long life lasting without maintenance.


• Bureau Veritas - IEC62208 enclosure standard.


• UL508A – CAN/CSA-C22.2

Typical Applications.

The Thalassa PLM range of wall-mounting enclosures are a great choice for using in electrical distribution and control and in public areas.

• Electrical distribution and Control


• Infrastructures and Industry


• Indoor, outdoor and harsh environments


• Public areas thanks to total insulation – safety


• Automation, measurement, distribution and protection


• ATEX version for potentially explosive atmosphere

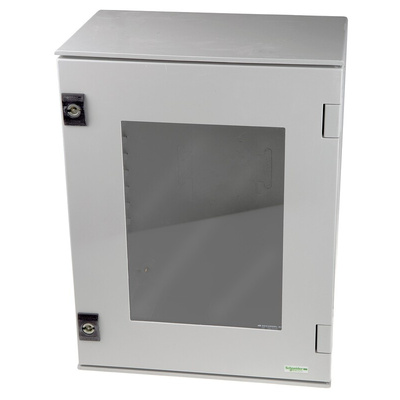

Schneider Electric Wall Box, Transparent Door, +960°C Fire Resistance - Thalassa PLM Series - NSYPLM64TG

Worried about damp conditions affecting your industrial electronics? Squirrel them away in this wall box from Schneider Electric. An IP66 rating seals the deal by indicating protection against high-pressure water jets, making the enclosure suitable for both indoor and outdoor use. Thanks to a tempered glass panel on the door, you can visually check on the contents without disrupting operations or compromising security in sensitive locations. For added peace of mind, a sturdy 3mm double-bar lock lets only authorised users control access to the equipment inside.

Features & Benefits

• Impact-resistant against forces of up to 5 joules for compatibility with the knocks and bumps of a heavy-duty setting
• Compact dimensions of 647 (H) x 436 (W) x 250mm (D) slip easily into tight setups
• Robust fibreglass-reinforced PET material ensures long-lasting performance

Applications

• Switchgear
• Shared offices
• Telecommunications equipment
• IT hardware

Is this product fire-safe?

Yes, the flame-resistant material can handle temperatures up to +960°C and, as it's also halogen-free, it won't release toxic gases on burning.

What ambient temperatures does this wall box withstand?

It functions without losing integrity in operating temperatures between -40°C and +80°C, meaning it handles challenging environmental conditions with ease.

Approvals

UL

Standards

IEC 62208, NEMA classification 13,NEMA classification 4X
