NSYPLM75TG, Schneider Electric Thalassa PLM Series Polyester Wall Box, IP66, Viewing Window, 747 mm x 536 mm x 300mm, Настенный шкаф

Schneider Electric Thalassa PLM Wall Boxes

A range of robust glass-fibre reinforced, corrosion resistant polyester wall mounting enclosures. Designed for indoor or outdoor use being both UV stable and resistant to the principle chemicals and atmospheric agents.

Features and Benefits

• IP66 protection meaning the enclosures are dust tight and protect against powerful jets of water and heavy seas
• External mechanical impact resistance of IK10 (protected against a 5kg object dropped from 20cm
• Self-extinguishing provides you with the added safety regarding fire protection
• No electrical contact risk
• Can be used in a large temperature range
• Halogen free
• Lightweight
• Easy to install

Typical Applications

The range of Thalassa PLM enclosures are suitable for using within electrical distribution and control applications and for automation, measurement, distribution and protection.

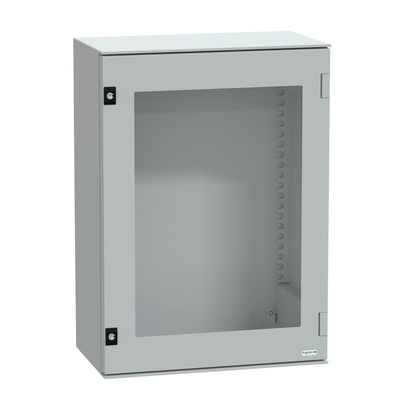

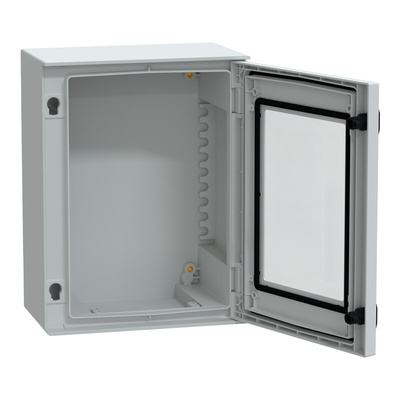

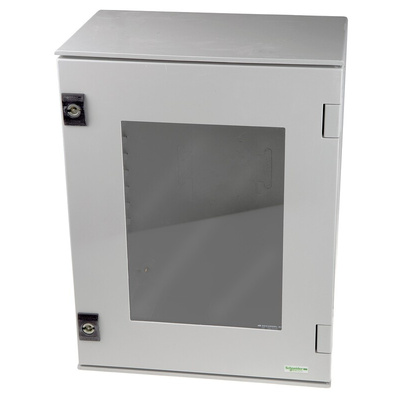

Schneider Electric Wall Box, Transparent Door, 3mm Double-Bar Lock - Thalassa PLM Series - NSYPLM75TG

In rugged industrial settings, your electrical components need dependable shielding. That's where this wall box from Schneider Electric comes in. Thanks to its fibreglass-reinforced polyester body, it does double duty by protecting against impacts and insulating to prevent electric shocks. This material also holds its own when exposed to UV radiation, making it suitable for outdoor use. For quick and simple mounting, the enclosure comes with notches for fastening with screws onto a wall or flat surface. A clear tempered glass door lets you keep an eye on your kit at all times.

Features & Benefits

• IP66 rating indicates that it's dustproof and withstands high-pressure water jets
• Broad operating temperature range of -40°C to +80°C for use in demanding settings
• Compact dimensions of 715 (L) x 465 (W) x 280mm (H) for space-efficient installation in tight setups

Applications

• Switchgear systems
• Warehouses
• Assembly lines

Is this wall box flame-resistant?

Yes, this unit can withstand up to +960°C in the event of a fire. It stops burning in a short time too, so it's a safe choice for volatile work areas.

Standards

IEC 62208, NEMA classification 13, NEMA classification 4X
