NSYPLM86TG, Schneider Electric Thalassa PLM Series Polyester Wall Box, IP66, Viewing Window, 847 mm x 636 mm x 300mm, Настенный шкаф

Schneider Electric Thalassa PLM Wall Boxes

A range of robust glass-fibre reinforced, corrosion resistant polyester wall mounting enclosures. Designed for indoor or outdoor use being both UV stable and resistant to the principle chemicals and atmospheric agents.

Features and Benefits

• IP66 protection meaning the enclosures are dust tight and protect against powerful jets of water and heavy seas
• External mechanical impact resistance of IK10 (protected against a 5kg object dropped from 20cm
• Self-extinguishing provides you with the added safety regarding fire protection
• No electrical contact risk
• Can be used in a large temperature range
• Halogen free
• Lightweight
• Easy to install

Typical Applications

The range of Thalassa PLM enclosures are suitable for using within electrical distribution and control applications and for automation, measurement, distribution and protection.

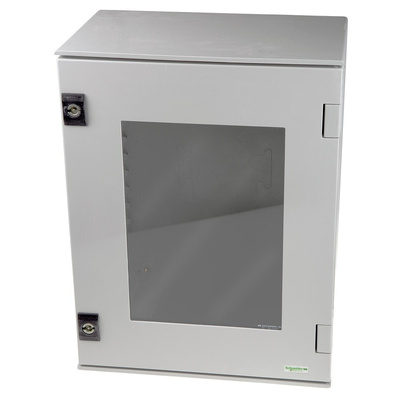

NSYPLM86TG Wall Mounting Enclosure

What are the external dimensions?

NSYPLM86TG has external dimensions of 847 x 636 x 300 mm.

What type of lock does it have?

The enclosure has 2, 3 mm double-bar locks.

What is supplied?

The NSYPLM86TG enclosure is supplied with a single piece body, transparent tempered glass door and 2 locks.

Can the wall box be used outside?

The NSYPLM86TG has an Ingress Protection rating of IP66 so can be used inside or outside.

Standards

IEC 62208, NEMA classification 13, NEMA classification 4X
