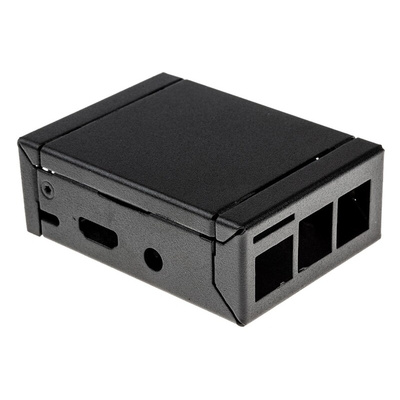

14891-110, nVent SCHROFF Metal Case for use with Raspberry Pi 2, Raspberry Pi 3 in Black

Schroff Interscale M Case for Raspberry Pi 2 Model B and Raspberry Pi 3 Development Boards

From Schroff the Interscale M protective case designed to enclose and protect your Raspberry Pi 2 Model B or Raspberry Pi 3 development board. This Raspberry Pi case is made from metal and protected by a black powder coating making it both durable and attractive. The RPi case has a modular design comprising of three easy to assemble components; a chassis, cover and rear panel. Four self-adhesive rubber feet, 6 M2.5 Torx screws and a wall mounting bracket are also provided

Raspberry Pi Case Components

EMC Protection and Ingress Protection

This metal Interscale M Raspberry Pi enclosure features integrated EMC protection of up to 20 dB at 2 GHz and ingress protection up to IP30

Chassis

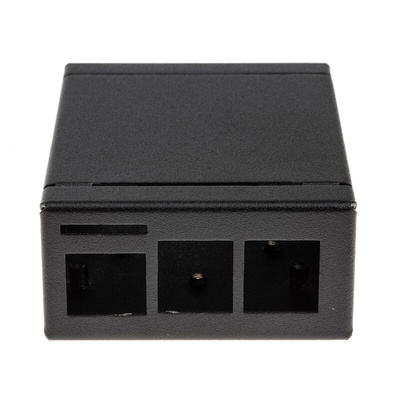

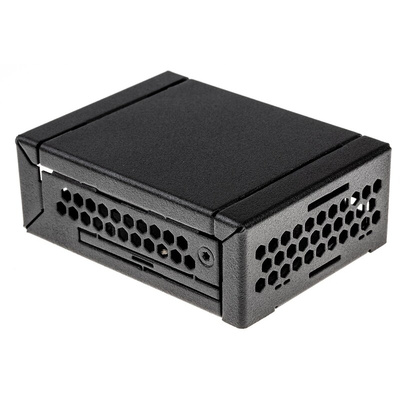

One side of this Raspberry Pi case chassis contains ventilation holes for dissipating the heat of the internal components. The base of the chassis features M2.5 press-in threaded standoffs to support the RPi board. M2.5 Torx screws are provided to secure the Raspberry Pi board into place. Cut-outs in the front and side of the chassis accommodate USB and Ethernet ports and all the necessary connectors

Cover and Rear Panel

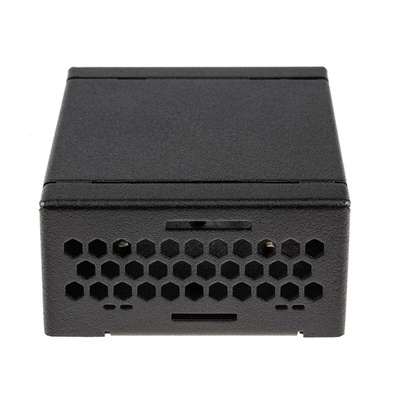

The cover and rear panel of this Interscale M Raspberry Pi case can both be removed while the enclosure case is being assembled. The cover is secured to the chassis by two screws which can be quickly removed to allow access to the internal components such as GPIO pins. The rear panel features ventilation holes for heat dissipation

Key Features and Benefits

• Suitable for use with Raspberry Pi 2 Model B or Raspberry Pi 3
• Easy to assemble modular design
• Removable top cover and front panel for easy access to internal components
• Durable metal design with EMC protection
• Protective RAL 9005 powder coating
• Cut-outs for ports and connectors
• Ventilation holes for heat dissipation
• M2.5 press-in standoffs for mounting PCB
• Self-adhesive rubber feet for additional stability

Note

Raspberry Pi development board is not included
