RS PRO Durometer

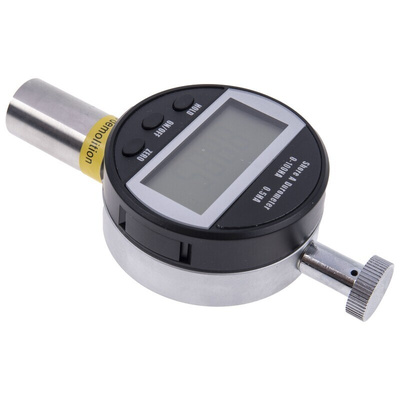

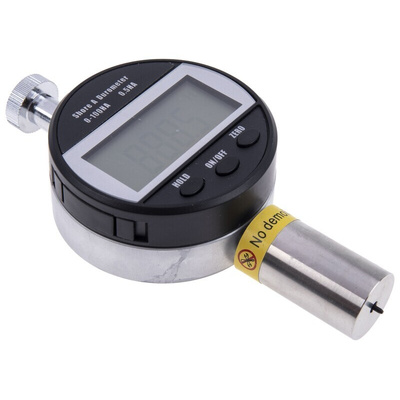

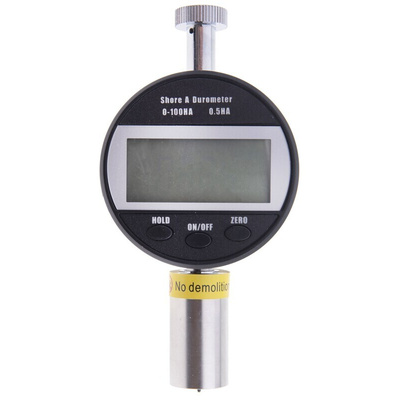

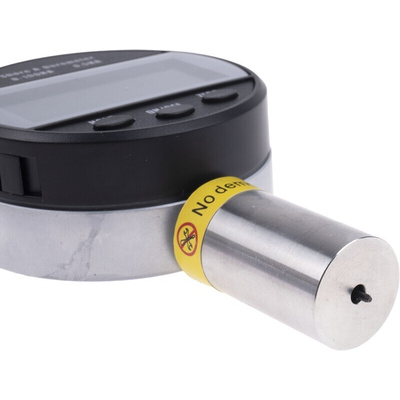

RS Pro Digital Shore A Durometer

RS Pro Digital Shore A Durometer provides a fast method of testing hardness on rubbers, plastics, leathers and other soft materials. This pocket sized digital durometer is high quality, durable and provide a fast and convenient method of measuring.

Features and Benefits

Fast and convenient method of measuring.
Large Digit Size: 14 mm
3 Button Control: ON/OFF, HOLD, ZERO
Power: 1 x Lithium CR 2032 – 3 V Battery
Manufactured to comply with BS ISO 7691-1:2004

Supplied with

Fitted case with check block

Parallels, Surface Finish & Hardness

Surface Finish

Any machined component has a surface geometry which consists of three basic elements:

Form or Curvature - Whether the surface has irregular bumps or dimensional changes
Waviness - Whether the surface has regular repetitive ripples or patterns (e.g. milling patterns)
Roughness - The shapes or irregularities that are smaller than, and form part of the waviness pattern (e.g. material micro-structure)

Waviness and roughness are traditionally the most difficult elements to measure when comparing surface finish, however, they have a radical effect on the performance of the finished component. Variations will cause aesthetic appearance changes, component wear variations, oil retention variation etc. Many manufacturers therefore specify a range of roughness values which their components should be manufactured to, often expressed as: Ra, Rq (RMS), RzDIN, Ry, Sm,mm.
