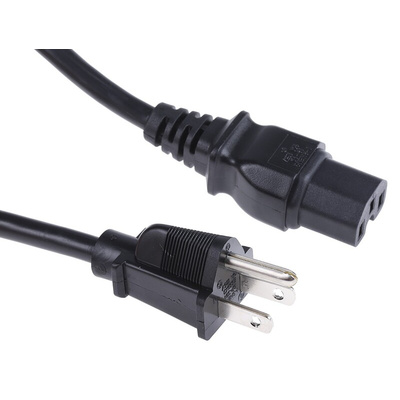

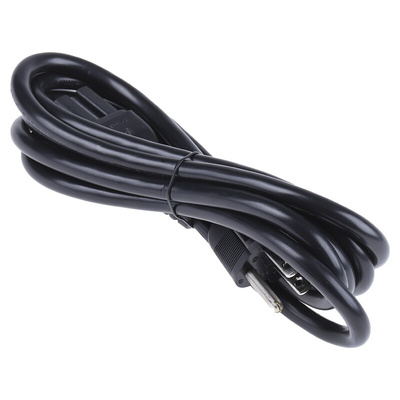

RS PRO IEC C15 Socket to Type B US Plug Plug Power Cord, 2m, Кабель

RS PRO 2 m Power Cable, C15, IEC to NEMA 5-15P, US Plug

Need to connect a C15 male socket to a standard US socket? This power cable from the RS PRO range will do just that while providing two metres of extension. The female C15 connector, known as a kettle plug, is used for high-temperature applications.

Sheathed in black PVC for flexibility and durability, the 3-core cable has a wire size of 18AWG. The moulded plug and socket take the strain off the connection, meaning the cable assembly lasts longer. It's voltage rated at 125 V and current rated at 15 A.

The power cable has been tested as a safe and effective coupling cord. It meets international standards including CSA STD C22.2 No. 1-25 on cord sets and supply cords, CSA STD C22.2 No. 182.3-M1987 on special-use attachment plugs, receptacles and connectors and ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 on electrostatic discharge. It contains only minimal levels of hazardous substances (RoHS).

Features and Benefits

• Power cable
• Two metres long
• C15 kettle plug female connector to NEMA 5-15P standard US plug
• Wire size of 18 AWG
• Voltage rating of 125˚C
• Current rating of 15 A
• Compliant with CSA STD C22.2 No. 1-25 and CSA STD C22.2 No. 182.3-M1987 on cords, plugs and connectors
• Compliant with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 on electrostatic discharge
• RoHS compliant on hazardous substances

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
