RS PRO RS9020 Phase Rotation Tester, CAT III 300 V, 400Hz Max, 400V ac Max with RS Calibration, Индикатор чередования фаз

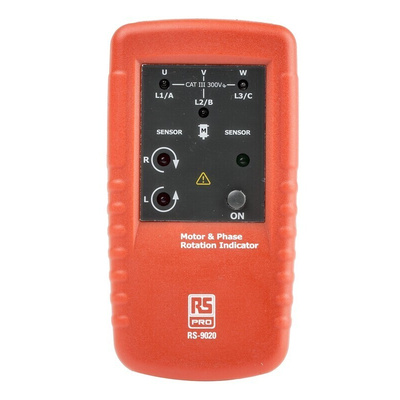

RS PRO RS9020 Phase Rotation Tester LCD

Phase rotation testers or motor rotation testers, allow industrial electricians to connect to terminals of a system or motor being installed, it assists with determining phase rotation without the need to energise the motor with a temporary electrical source. For clockwise and anti-clockwise determination the RS9020 is a great value hand held instrument for detecting the phase sequence of phase systems. Rotary field indication, determine the motor connection and magnetic field detection all with a 9V alkaline battery. With a user friendly clear display screen and robust housing this item is ideal for heavy duty industrial environments.

Accessories include 3 x self-retaining test leads, 3 alligator clips, user manual and a gift box with carrying case.

Features and Benefits:

• Nominal voltage rotary direction 1V to 400V AC
• Nominal voltage phase indication 120V to 400V AC
• Frequency range 2 to 400Hz
• CATIII 600V protection level
• Operating altitude of 2000m
• 3 year warranty

Dimensions 130 x 69 x 32mm

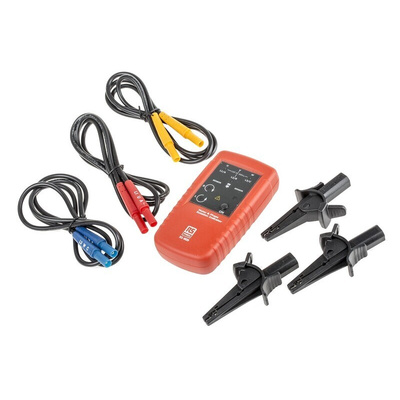

Supplied with

Self-retaining test leads (x3), alligator clips (x3), carrying case and user manual

RS9020
