0031.1622, Schurter FEC Series 10 (VDE) A, 20 (UL/CSA) A Slotted Cap Panel Mount Fuse Holder, PC2, Держатель предохранителя

Schurter FEC Series

Schurter FEC series panel mount fuse holders for 5 x 20 or 6.3 x 32 mm cartridge fuses. The FEC series have quick connect terminals and area available with a finger grip or slotted cap.

For appliances in unattended use
Low profile fuse holder with insulation walls
Panel Mount
IP40 Rated
Quick connect terminals

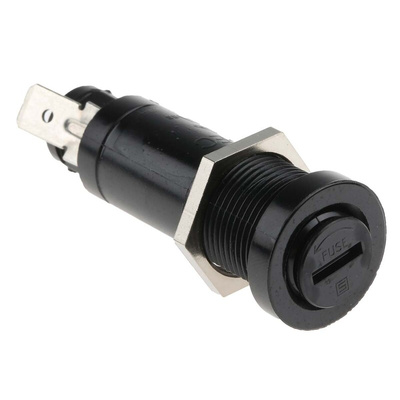

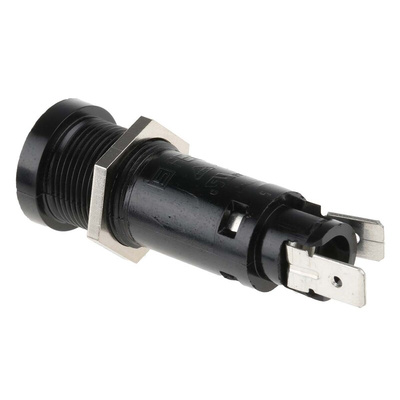

Schurter FEC Series Slotted Panel Mount Fuse Holders

The Schurter FEC series 10A, 20A panel mount fuse holder offers high current and voltage ratings of 10A, 20A and 600VAC/DC respectively. This makes it ideal to use in harsh environments. The body of this holder is made of thermoset material and tin plated copper alloy is used for contact. It has captive type fuse carrier.

Features and Benefits

• Compatible fuse dimension is 6.3mmx32mm
• Low profile fuse holder with insulation walls
• Protection against electric shock
• Quick connect terminal type of 6.3mmx0.8mm

Applications

• Appliances in unattended use
• General circuit protection
• Vehicle electrical circuits

Certifications

• CSA certified
• IEC529 certified
• IP40 rated
• UL 4248-1 approved

Panel Mounting

CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.
