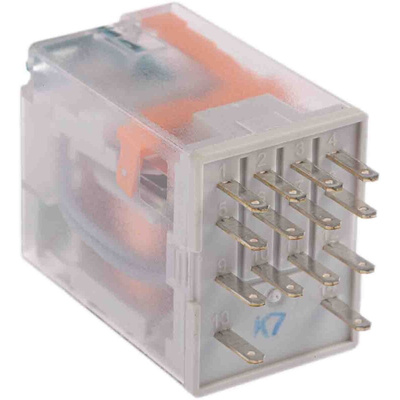

R4N-2014-23-1024-WTL, Relpol Plug In Power Relay, 24V dc Coil, 6A Switching Current, 4PDT, Реле

Relpol Miniature Industrial Relays

R2N, R3N and R4N series miniature industrial relays for general applications. All relays are designed for mounting in plug-in sockets with WT features as standard (W - mechanical indicator + T - lockable front test button). Accessories include retainer clips and connection strips.

R2N (2 CO), R3N (3 CO) and R4N (4 CO)
Miniature dimensions
Cadmium-free contacts
AC and DC coils
Relays may be provided with test buttons (non latching) and plugs
RoHS compliant

Relpol Miniature Non-latching Relay

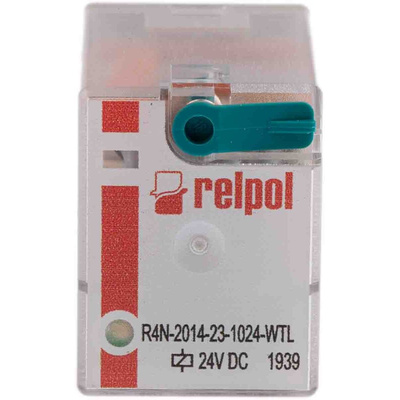

The Relpol R4N series plug-in mount non-latching relay has contact configuration of 4PDT. It is actuated with 24VDC coil voltage and 6A switching current. This miniature industrial relay has a mechanical indicator and lockable test button. It is ideal for general-purpose applications.

Features and Benefits

Cadmium-free contacts
Coil power is 900mW
Coil resistance is 640ohm
Include retainer clips and connection strips
Coil to contact isolation is 2.5kVAC
Plug-in terminal type

Certifications

CE certified
CSA certified
CULus
EAC certified
LR
VDE approved
IP40 rated

Datasheet
