0850-0680, BARTH lococube mini-PLC Series PLC I/O Module for Use with STG-680, 7 → 32 V dc Supply, Digital, PWM, Solid, Логический модуль

BARTH Logic Module

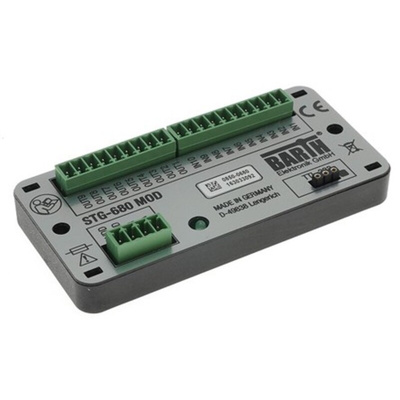

The BARTH STG-680 MOD panel mount highly innovative Mini-PLC that extends the established Barth series of Mini-PLCs. It provides an outstanding graphical programming capability at the lowest current consumption and small form factor. The MODBUS interface allows you to connect various industrial network components to the mini-PLC. It has six analogues inputs which can vary from 0VDC to 10VDC and four digital inputs up to 1kHz. This logic module has 8 power PWM outputs up to 1.5A and 1 PWM power output up to 10Khz. This logic module can be easily programmed using miCon-L software, which does not require a difficult programming language.

Features and Benefits

Open source programming option
Wide operating voltage that ranges between 7VDC and 32VDC
Operating temperature ranges between -40°C and 60°C
Vibration resistant and rugged sealing
TTL-232/USB connection to PC
Graphically programmable MODBUS data
Reliable solid-state output
Fail-safe oscillator
Programmable status LED

Applications

Industrial automation
Building automation
Automotive technology
Environmental technology
Process control
