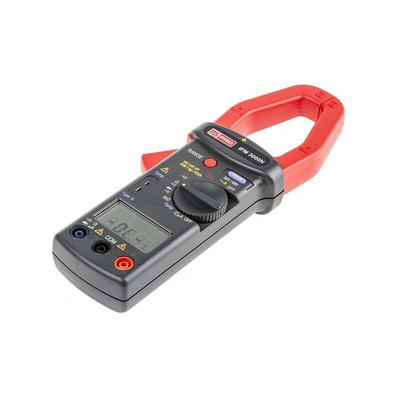

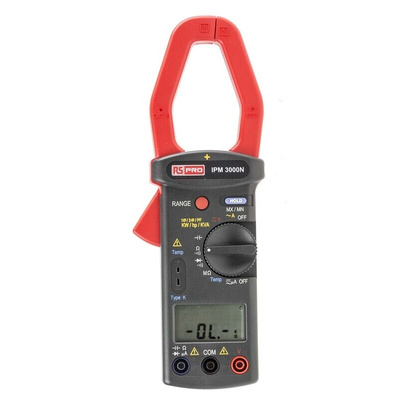

RS PRO IPM3000N Clamp Meter, Max Current 1000A ac

RS PRO IPM3000N HVAC Clampmeter, 1000 A

From the trusted RS PRO brand, this IPM3000N is a great value 1000 A ac power meter with features designed to suit HVAC and electrical maintenance applications. The clamp meter features a wide clamping jaw that can fit easily around power cables, presenting an efficient way to measure amps and volts in various kinds of electrical devices.

While the device is primarily designed to measure amps via the sensor clamp, it also features inputs for different kinds of sensor and test equipment.

This HVAC clamp meter has a wide and easy-to-read display screen, that can display customized data such as elapsed time and minimum and maximum readings. Powered by alkaline batteries for maximum portability, and featuring a straight forward interface, this clamp meter presents a cost-effective and robust solution to measuring current, particularly in HVAC equipment.

Features and Benefits

• 10 000 count dual display LCD
• True rms current & voltage measurement
• True and apparent power and phase angle measurement (kW, kVA, Ø)
• Dual display options (kW+PF, kVA+ Ø,V+A, A+Hz, V+Hz)
• 1000 Aac current range to check motor & compressor current consumption
• 40 mm clamp diameter
• Min/Max with elapsed time to capture motor inrush current readings
• Data hold facility
• 1 nF to 3500 μF capacitance range suits run/start capacitor checks
• 1 kHz frequency measurement range
• Diode and continuity test
• μA range to measure flame sensor current
• 900 °C range Type K thermocouple input socket
• Analyse time-stamped temperature and power data
• 100 MΩ resistance range
• Dimensions 228 x 76 x 39 mm
• Weight 465 g

Applications

This versatile clamp meter can be used for a variety of purposes. In general electronics, you might use it to check for energized circuits and balanced loads, or to capture motor in-rush current readings. However, it is also desinged with HVAC equipment readings in mind. This clampmeter can use its MAX/MIN recording in the temperature mode to assess efficiency, and further analyse both temperature and voltage data with the timestamp function. It is also able to measure flame safegaurd device current draw, and can provide an insulation test up to 100MΩ.

Why RS PRO?

RS PRO aims to be your go-to brand when you need reliability, quality, and affordability. We source high-quality tools and parts from trusted sources and employ expert testing to build a brand you can rely on.

When it comes to test and measurement equipment, RS PRO has an extensive range of solutions. From electrical to environmental measurement, we offer calibrated and multi-function instruments to suit your needs.

Standards

EN61010-1 IEC 1010-2-032 600 V Cat lll

Supplied with

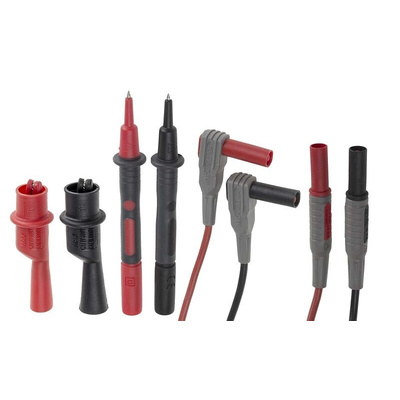

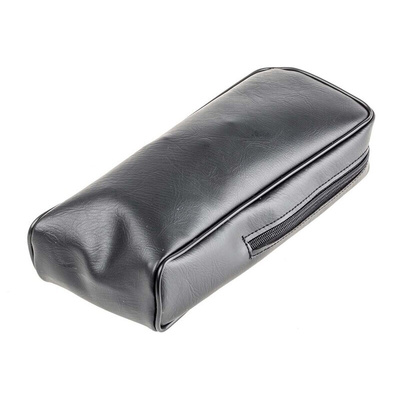

Test leads, crocodile clips (x2), case, 9 V PP3 battery, instructions
