RS PRO ILCM03A Clamp Meter, Max Current 60A ac With UKAS Calibration

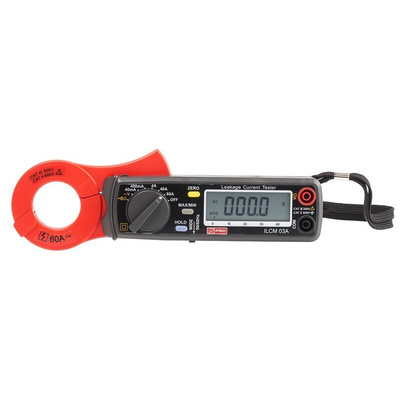

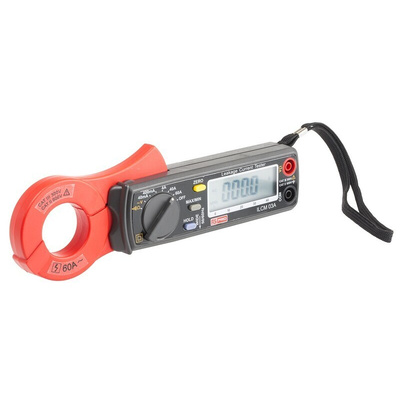

RS PRO Leakage Current Clampmeter ILCM 03

From the trusted RS PRO brand, the ILCM 03 is a great value leakage current clamp designed for safe, non-intrusive AC current measurement upto 60 A. It offers five ranges, with high resolution 10 μA on the 40 mA range. Features include fast bar graph display of up to 30 times/second.

Battery-powered for maximum portability, this multifunction current clamp meter is ideal for on-the-go applications in almost any environment.

It is also supplied in a carry case to keep the clampmeter safe and secure during transit.

Features and Benefits

• Large 4000 count 3 digit LCD with analog bar graph
• 40 mA, 400 mA, 4 A, 40 A, 60 A measuring ranges
• 10 μA high resolution
• 30 mm diameter conductor jaw capacity
• 400 Vac voltage range
• 400 Ω resistance and continuity range with beeper below 40Ω
• Auto power off selectable
• Max/Min Data Hold functions
• Zero/relative value function
• Easy single rotary switch
• Dimensions 210 x 62 x 35.6 mm
• Weight 200 g (battery included)

Applications

This current clamp meter is designed for current measurement in electrical testing, and combines a digital multimeter with a clamping current sensor. The nature of the clamp means that it can fit around a wire at any point to sense AC current and voltage. This has the advantage of allowing electricians to take a reading from a conductor without touching it, which is both more convenient and safer than other methods.

This current clamp is used for measuring high levels of current in service and maintenance applications. It can also be used when installing electrical equipment.

Why RS PRO?

RS PRO aims to be your go-to brand when you need reliability, quality, and affordability. We source high-quality tools and parts from trusted sources and employ expert testing to build a brand you can rely on.

When it comes to test and measurement equipment, RS PRO has an extensive range of solutions. From electrical to environmental measurement, we offer calibrated and multi-function instruments to suit your needs.

Supplied with

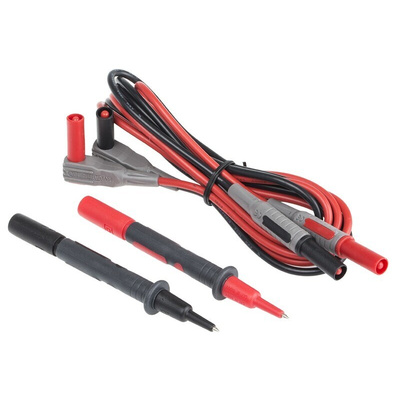

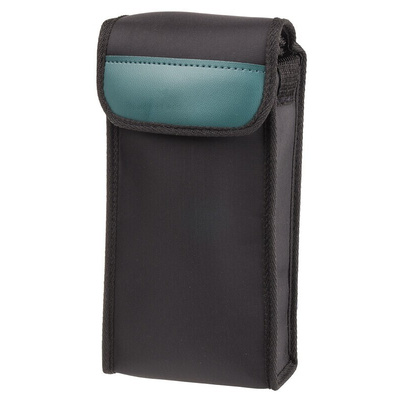

Carrying case, user manual, 1.5 V batteries (x2), test lead set
