634.310.75, Werma KombiSIGN 40 Series Yellow Multiple Effect Beacon Tower, 24 V ac/dc, LED Bulb, AC, DC, IP66, IP69K, Маячок

Stacking Signal Tower - KombiSIGN 40, 40mm

The WERMA KombiSIGN 40 modular stacking signal tower is an ideal solution to the increasing requirement for safety, machine productivity and reduced downtime. Each KombiSIGN module is equipped with a bayonet fixing with integral contact system. The modular design of these stacking towers enables quick and easy installation.

Features and Benefits

• Suitable for machine and manual Andon indication
• Modular system allows a completely free combination of optical and audible signal elements
• Mechanical and electrical connection of the elements in seconds using a bayonet connection system
• Completely safe element changes (contact-voltage proof) without the need for tools
• Protection rating IP66
• Up to 5 elements can be mounted on a terminal base
• Flexible combination of optical and audible elements
• Optical isolation due to O-ring seal stopping illumination of adjacent element
• Operating temperature range is -30 to +60 °C
• Polycarbonate 40 mm diameter

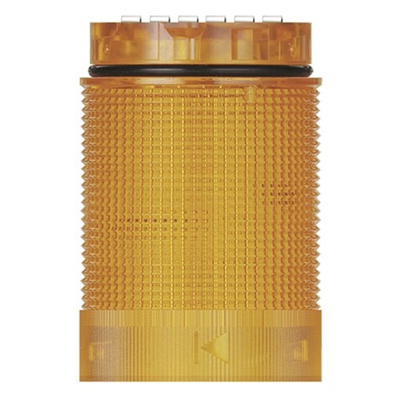

WERMA Multiple Effect Yellow LED Beacon, 24V DC, 40mm Base Diameter - KombiSIGN 40 Series - 634.310.75

Customise your own signal tower with this yellow optical beacon from WERMA. Its modular design means you can stack it with other lights and audible signal components from the KombiSIGN 40 range. The multiple-effect beacon offers both flashing and steady warning lights for increased versatility. A specially designed Omniview lens eliminates blind spots and ensures the beacon light is clearly visible from any direction. This beacon is suitable for use in harsh working environments thanks to its IP66 (ingress protection) rating, meaning it's protected against dust and high-pressure water jets.

Features & Benefits

• Strong polycarbonate (PC) lens that's resistant to shock and moisture
• Wide operating temperature range of -30°C to +60°C for use in a variety of demanding environments
• CE (Conformité Européenne) certified as it meets the safety, health and environmental protection requirements of the European Union

Applications

• Food and beverage industries
• Textile and printing industry
• Laboratories

How do you mount this beacon?

This beacon is quick and easy to mount, thanks to its bayonet connection system. This allows you to make the necessary electrical and mechanical connections in seconds.

Datasheet

Instruction Sheet - 634.310.75
