634.430.75, Werma KombiSIGN 40 Series White Multiple Effect Beacon Unit, 24 V ac/dc, LED Bulb, AC, DC, IP66

Stacking Signal Tower - KombiSIGN 40, 40mm

The WERMA KombiSIGN 40 modular stacking signal tower is an ideal solution to the increasing requirement for safety, machine productivity and reduced downtime. Each KombiSIGN module is equipped with a bayonet fixing with integral contact system. The modular design of these stacking towers enables quick and easy installation.

Features and Benefits

• Suitable for machine and manual Andon indication
• Modular system allows a completely free combination of optical and audible signal elements
• Mechanical and electrical connection of the elements in seconds using a bayonet connection system
• Completely safe element changes (contact-voltage proof) without the need for tools
• Protection rating IP66
• Up to 5 elements can be mounted on a terminal base
• Flexible combination of optical and audible elements
• Optical isolation due to O-ring seal stopping illumination of adjacent element
• Operating temperature range is -30 to +60 °C
• Polycarbonate 40 mm diameter

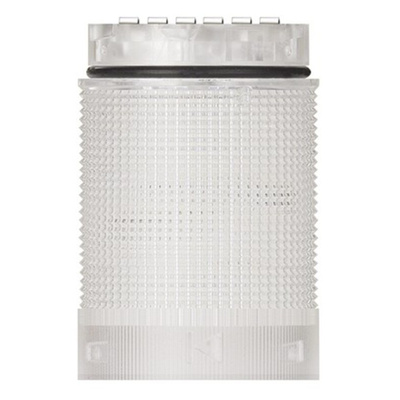

WERMA Beacon Unit, 40mm Base Diameter, 50,000h Optical Service Life - KombiSIGN 40 Series - 634.430.75

Shine a light on the status of your machinery using this beacon unit from WERMA. Its LED bulb emits a bright white glow to draw people's attention. You can adjust the light effect between flashing and steady modes for versatile signalling. An IP66 rating assures you that this unit is completely sealed against dust and high-pressure water jets. Thanks to the simple bayonet connection system, you can fix it to a signal tower in a jiffy.

Features & Benefits

• Optical service life of 50,000 hours for long-term operation
• 360° dome radiation lets you see it from all directions

Applications

• Medical centres
• Airports and seaports
• Storage facilities

Can I use this beacon outdoors?

Yes, this beacon has a PC lens that resists UV light, making it a safe and effective choice for outdoor use.

Datasheet

Instruction Sheet - 634.430.75
