RS PRO ICMA5 Clamp Meter, Max Current 200A ac CAT III 1000V With RS Calibration

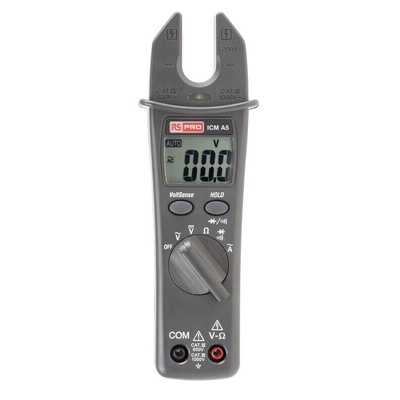

RS PRO ICMA5 Open Jaw Clampmeter

From the trusted RS PRO brand, the ICMA5 Slimline clamp meter is used to check voltage, resistance, continuity and current. The integral non-contact ac voltage detector enables fast identification of the presence of mains voltages. The open jaw current clamp enables safe, non-intrusive measurement of ac currents up to 200 A.

Battery-powered for maximum portability, this multifunction current clamp meter is ideal for on-the-go applications in almost any environment.

Features and Benefits

• 2000 Counts large LCD display
• Open jaw technology - 16 mm dia. conductor size
• 200 A ac measurement capability
• 750 V ac / 1000 V dc measurement range
• Integral non-contact AC voltage detector with visual & audible indication
• 20 MΩ resistance range
• Continuity and Diode Test
• Display hold
• Auto-power off
• Conforms to EN61010-1 (safety rating) CAT IV 600 V, CAT III 1000 V

Applications

This current clamp meter is designed for current measurement in electrical testing, and combines a digital multimeter with a clamping current sensor. The nature of the clamp means that it can fit around a wire at any point to sense AC current, voltage and continuity. This has the advantage of allowing electricians to take a reading from a conductor without touching it, which is both more convenient and safer than other methods. As this is an open clamp clampmeter, it is ideal for quicker readings

This current clamp is used for measuring high levels of current in service and maintenance applications. It can also be used when installing electrical equipment.

Why RS PRO?

RS PRO aims to be your go-to brand when you need reliability, quality, and affordability. We source high-quality tools and parts from trusted sources and employ expert testing to build a brand you can rely on.

When it comes to test and measurement equipment, RS PRO has an extensive range of solutions. From electrical to environmental measurement, we offer calibrated and multi-function instruments to suit your needs.

Supplied with

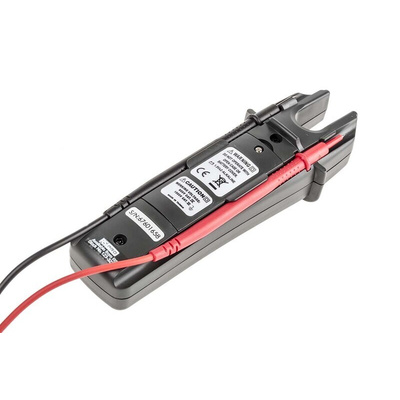

PP3 9V alkaline battery, test leads and instruction manual
