RS PRO AFG-21225 True Dual Channel Arbitrary Waveform Function Generator
RS PRO AFG-21225 is a base-level dual-channel arbitrary function generator which offers superior functions in its class. The two channels are similarly equipped in order to to accommodate dual-signal applications such as differential signalling or IQ modulation. They can be used in either independent or correlated (Couple, Tracking, Phase) configuration. There are four ways the AFG-21225 can generate customised arbitrary waveforms: editing waveform via PC software; point-by-point editing on the panel; loading CSV file; loading captured waveform from RS Pro IDS Series oscilloscopes. The AFG-21225 has a 3.5 inch LCD which displays the operation information, including the true waveform presented at the output. User friendliness and outstanding cost-performance make the AFG-21225 an instrument of choice not only for practical considerations but also for capabilities which can accelerate the development process.
Features and Benefits
•Wide frequency ranges from 1 μHz - 25 MHz (sine wave)
•1 μHz resolution in full range
•Built-in standard 120 MSa/s, 10 bit, 4 Kpts arbitrary function for both channels
•True dual-channel output - CH2 provides same characteristics as CH1
•Dual-channel supports Couple, Tracking, Phase operations
•1% - 99% adjustable duty cycle for square waveform
•User-friendly interface for easy parameter setting and parameter display
•Built-in standard AM/FM/PM/FSK/SUM/Sweep/Burst and Frequency Counter
•USB host/device interface for remote control
Applications
•Power supply/transformer simulations
•Traditional/motor power
•Laboratory and educational research
•Pulse signal as trigger or synchronisation
•Automotive electronics
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
Supplied with

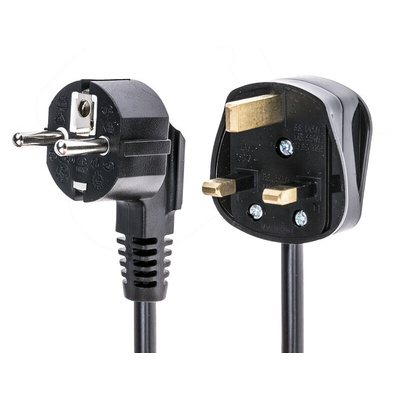

Power cord, test leads (x2), user manual CD, quick start guide
