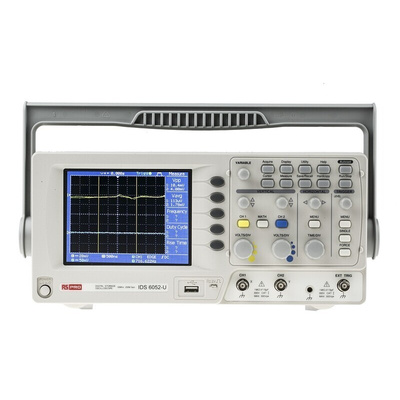

RS PRO IDS6052U Digital Portable Oscilloscope, 2 Analogue Channels, 50MHz

RS PRO IDS-6000-U Series Digital Storage Oscilloscopes (DSO)

The RS PRO IDS-6052-U is a general purpose 2-channel Digital Storage Oscilloscope. This instrument has many great features including a
user-friendly menu tree operations, compact size, ergonomic design, USB host for PC connectivity and USB device port support.

RS PRO IDS-6000-U Series offers a 5.7 inch colour TFT LCD, dual sampling modes, 4 kpts record length, real-time sampling rate of 250 MSa/s and ET sampling rate of 25 GSa/s. It is designed to optimise balance of performance between memory length and sampling speed.


The RS PRO IDS-6052-U functionality and capability gives users a better measurement experience and is ideal for applications such as educational and industrial basic requirements in servicing, maintenance and production.

Features and Benefits

• 50 MHz bandwidth with 2 input channels


• 250 MSa/s real-time and 25 GSa/s equivalent-time sampling


• 4 kpts memory length per channel


• Peak detect as fast as 10 ns


• Save/Recall of 15 front panel settings and waveforms


• 5.7 inch TFT colour display


• 19 Auto measurements


• Arithmetic operators - Add, Subtract, FFT


• USB port for PC connection


• Data logger


• Dimensions 310 x 142 x 140 mm


• Weight approximately 2.5 kg

Typical Applications

Digital oscilloscopes are a complex and multi-functional electronic laboratory instrument used to capture, process, display and analyse the waveform and bandwidth of electronic signals. DSO versions have a memory to store waveforms and display them over a period of time. Oscilloscopes are used in a wide range of industries e.g.

• Laboratories


• Educational establishments


• Product testing and Quality Assurance


• Service operation and post-sales support


• Product development and debugging

FAQs

Are calibration options available for this series?

Yes, calibration versions are available for some markets.

Why choose RS PRO?

RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions.

Supplied with

User manual, power cord, 70 MHz switchable passive probe (1 per channel)
