0 132 801 141, Bosch Geared DC Motor, 0.22 W, 24 V dc, 28.5 Ncm, 7.5 rpm, Двигатель

VMC General Purpose dc Motors

Professional range of VMC DC motors from Bosch. These VMC motors give you control and headlight range adjustment. All models are highly reliable and excellent quality.

Voltage - 24V
Power - 0.22W
Protection - IP 54

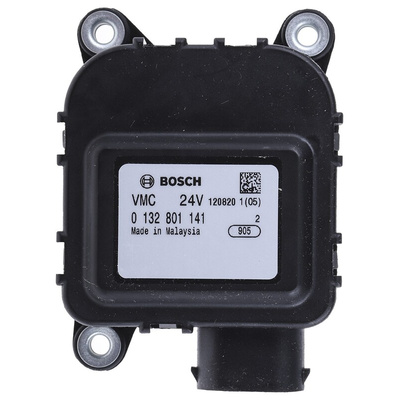

Bosch DC Motor, Permanent Magnet Motor Type, 63.5mm Height - VMC Series - 0 132 801 141

Need a reliable and efficient driving force for your general-purpose positioning applications? Choose this DC motor from Bosch. As it's a permanent magnet type, it gives you close control over speed and torque, so it's a handy choice when you want a highly accurate motor that tolerates fine adjustments. This style of motor also generates less heat or friction than conventional types, so it loses minimal energy during operation. Its compact size of 63.5 (H) x 65.5 (W) x 30.5mm (D) means it's a sure fit for busy setups.

Features & Benefits

• IP54 rating means it's protected against limited amounts of dust and water splashes
• High radial load limit of 50N and axial load limit of 30N mean the shaft can withstand heavy forces
• Supports left or right-hand rotation for versatility
• Light weight of 0.12kg places minimal strain on your equipment

Applications

• Factories
• Industrial tooling
• HVAC systems

What's the benefit of this product's built-in gear?

A built-in gear lets you know how many rotations the motor makes. This helps you more easily make any necessary adjustments to the rotational speed.

Permanent Magnet Motors

Suitable for motion, movement or positioning applications, where the user can select the drive or gearbox unit to be fitted.
