RS PRO 230V ac, 2 x 25V ac Toroidal Transformer, 500VA 2 Output, Трансформатор

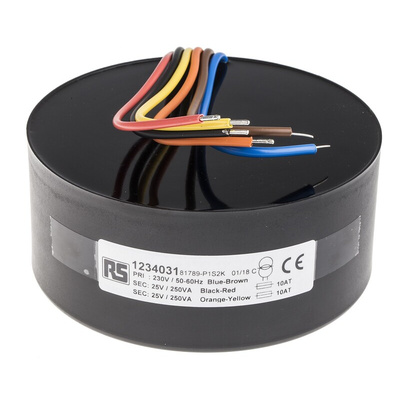

RS PRO 230 V AC, 2 x 25 V AC Toroidal Transformer, 500 VA 2 Output

This toroidal transformer from RS PRO is used for stepping power up or down in control circuits. It has a primary voltage rating of 230 V AC and a secondary voltage rating of 2 x 25 V AC, so you can charge two devices at the same time.
You can connect the twin secondary windings in series or in parallel to create a variety of circuit configurations. It's compact and light too, making it easy to install in a wide range of locations. It's terminated with double-insulated lead wires to protect against electric shock.
The transformer is housed in a nylon 6.6 casing that meets the UL94-V0 safety standard for low flammability. Toroidal transformers such as this one are useful for medical equipment, where their low current leakage and noiseless operation reduces interference with nearby devices.

Features and Benefits

• Surface mounting
• Double output
• Operating frequency of 50 to 60 Hz
• Diameter of 148 mm
• Height of 65 mm
• Weight of 3.5 kg
• Power rating of 500 VA

Datasheet
