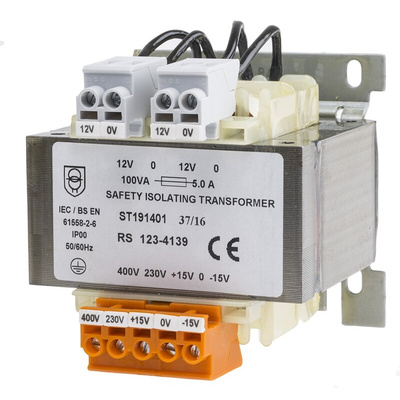

RS PRO 100VA DIN Rail Transformer, IEC 61558-2-6, 230 → 400V ac Primary, 12V ac Secondary

RS PRO 230 – 400V Single Phase DIN Rail Panel Isolation Transformer (TS35)

A DIN rail mounted single phase isolation transformer suitable for general applications with a varnish impregnation, rated from 230 to 400V, 50/60Hz. Built with a 2 section bobbin to keep full separation of between the primary and the 2 x 12V secondary windings.

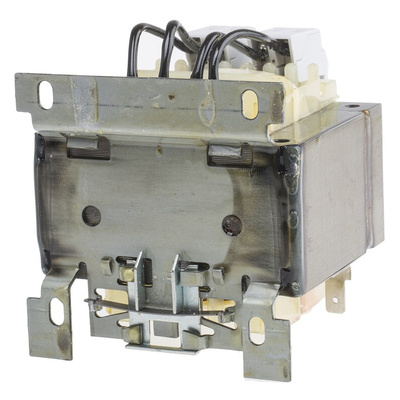

The DIN rail transformer features multiple input connections terminated using the simple screw terminals and is secured to the TS35 rail using M4 fixings. A high efficiency low regulation DIN rail isolation transformer fit for industrial applications.

Features and Benefits

TS35 DIN rail mounting Transformer
Isolating transformer
100Va Power rating
230 – 400V primary winding
2 x 12V secondary windings
Double section bobbin construction
Screw termination
Class I protection
100% electrical and flash tested

Standards and Approvals: UKCA, CE, IEC61558-2-6 / EN61558-2-6, RoHS Compliant

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

RS PRO Datasheet
