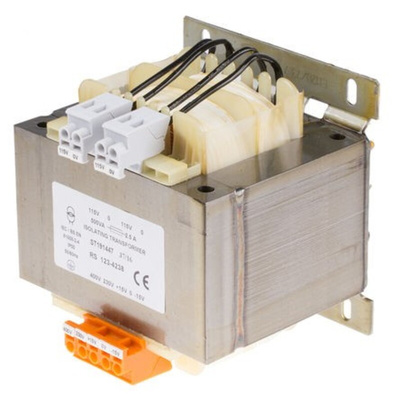

RS PRO 500VA Chassis Mounting Transformer, 2 x 115V ac

RS PRO 500 VA Isolation Transformer, 15 → 400 V ac Primary, 115 V ac Secondary

This single-phase RS PRO panel isolation transformer is a safe and efficient way to connect your electrical circuit. Able to mount onto flat, panel and DIN (Deutsches Institut für Normung) rail surfaces, you can use it for a wide variety of applications.

The transformer has two bobbin sections to keep primary and secondary windings separate. It has a standard primary winding 0 - 230 - 400 V ac, a 500 VA power rating and is designed to operate at frequencies between 50 Hz and 60 Hz.

With screw connectors for multiple inputs and brackets for screw fixing or DIN rail mounting, the transformer can be fixed in a variety of ways in home and industrial environments. The transformer is electrical and flash tested. It also complies with RoHS (Restriction of Hazardous Substances) standards for safety.

Features and Benefits

• Low noise laminations

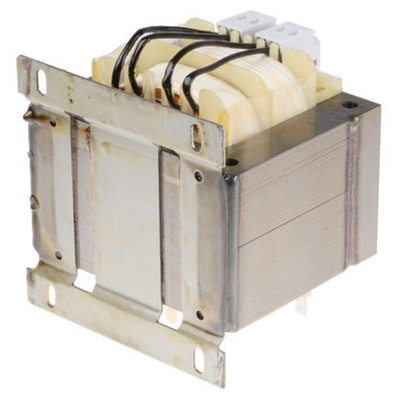

• DIN rail mounting and screw mounting
• Earth terminal included to ground your signal
• Primary voltage rating of 15 V ac to 400 V ac
• Secondary voltage rating of 115V ac
• Power rating of 500 VA
• Measures 120 mm x 124 mm x 125 mm
• Operating frequency range of 50 to 60 Hz
• Weight of 6.9 kg
