RS PRO 1kVA Chassis Mounting Transformer, 2 x 115V ac, Трансформатор

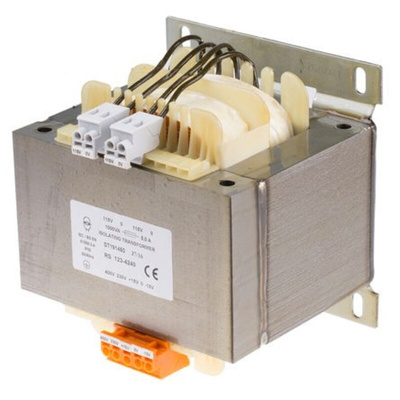

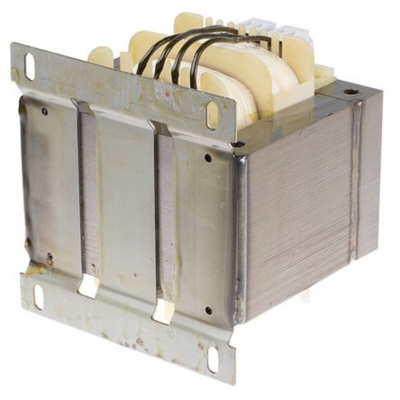

RS PRO 1000 VA Isolation Transformer, 15 → 400 V AC Primary, 115 V AC Secondary

Connect your electrical circuits safely with this panel isolation transformer from RS PRO. It's suitable for a wide variety of general applications and can be mounted onto flat, panel and DIN rail surfaces (DIN stands for Deutsches Institut für Normung, the German Institute for Standardisation).

This transformer is constructed with two bobbin sections that keep primary and secondary windings separate. The standard primary winding has a voltage of 0–230–400 V AC and a power rating of 1000 VA. An earth terminal is provided.

This transformer is supplied with screw connectors for multiple inputs and brackets for both screw mounting and DIN rail mounting, so there are plenty of fixing options, depending on your chosen environment. The transformer is varnish impregnated and provides a high level of efficiency. As part of the quality RS PRO range, this product has been exhaustively electrical and flash tested.

Features and Benefits

• Isolation transformer
• Low-noise laminations
• DIN rail mounting and screw mounting
• Earth terminal included to ground your signal
• Primary voltage rating of 15 V AC to 400 V AC
• Secondary voltage rating of 115V AC
• Power rating of 1000 VA
• Weight of 12.8 kg
• Measures 120 mm (L) x 124 mm (W) x 125 mm (D)
• Operating frequency range of 50 to 60 Hz
• 100% electrical and flash tested

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
