RS PRO 1.6kVA Chassis Mounting Transformer, 2 x 115V ac, Трансформатор

RS PRO 1600 VA Isolation Transformer, 15 V AC, 230 V AC, 400 V AC, 0 to 230 to 400 V AC Primary, 2 x 115 V AC

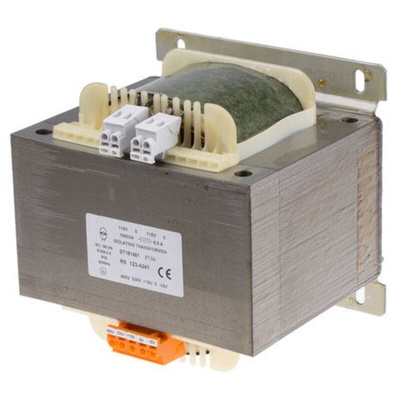

This RS PRO isolation transformer lets you transfer AC power to electrical equipment. Use this device in any situation where protection from harmful power surges is crucial.

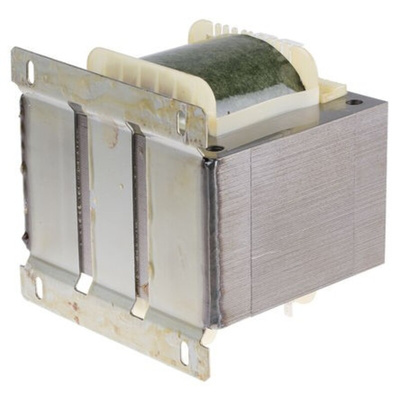

This transformer gives you the choice to step voltages up or down, thanks to its +15 V adjustment. Brackets allow you to fix the transformer in place with screws or on a DIN rail with ease. Lamination keeps electrical noise to a minimum, and the unit's coils are fully varnish-impregnated to guard against rust and humidity.


The transformer has been fully electrical and flash tested to ensure it can withstand high voltages. This type of transformer is frequently used to power sensitive electronic equipment such as laboratory instruments, computers and medical devices.

Features and Benefits

• Operating frequency range of 50 to 60 Hz


• Primary voltage rating of 15 V AC, 230 V AC, 400 V AC, 0 to 230 to 400 V AC


• Secondary voltage rating of 2 x 115 V AC


• Power rating of 1600 VA


• Length of 174 mm


• Width of 169 mm


• Depth of 160 mm


• Weight of 21.1 kg


• Certified to BS EN 61340-5-1:2007 Electrostatic Control Standards

RS Pro Panel Isolation Transformers Datasheet

RS PRO Datasheet
