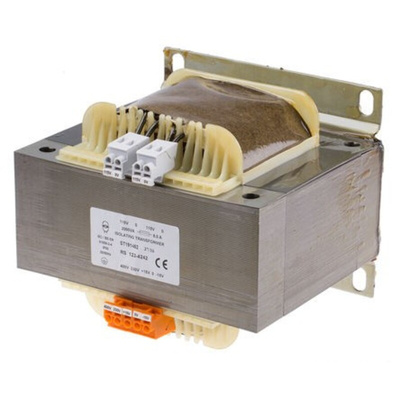

RS PRO 2kVA Chassis Mounting Transformer, 2 x 115V ac

RS PRO 2000 VA Isolation Transformer, 15 to 400 V AC Primary, 115 V AC Secondary

Use this RS PRO isolation transformer to safely transfer AC power to electrical equipment. It's most commonly used in situations where it's crucial to protect circuitry and devices from dangerous power surges.


You can step voltages up or down as needed thanks to the +15 V adjustment on the primary winding. The transformer is protected against rust and humidity by the varnish-impregnated coils, while lamination keeps electrical noise to low levels. A pre-drilled bracket makes it easy to install the unit on a DIN rail or panel using screws.


The transformer has been fully electrical and flash tested to ensure it can withstand high voltages. It's frequently used for running 120 V North American electrical equipment on a 230 V UK power supply.

Features and Benefits

• Operating frequency range of 50 to 60 Hz


• Primary voltage rating of 15 V to 400 V AC


• Secondary voltage rating of 115 V AC


• Power rating of 2000 VA


• Length of 192 mm


• Width of 172 mm


• Depth of 175 mm


• Weight of 24.6 kg


• Certified to BS EN 61340-5-1:2007 Electrostatic Control Standards

RS Pro Panel Isolation Transformers Datasheet

RS PRO Datasheet
