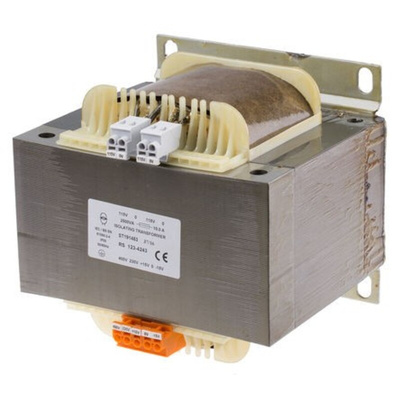

RS PRO 2.5kVA Chassis Mounting Transformer, 2 x 115V ac, Трансформатор

RS PRO 2500 VA Isolation Transformer, 15 to 400 V AC Primary, 115 V AC Secondary

Need to transfer power safely from an AC source to electrical equipment? Turn to this isolation transformer from RS PRO. It's designed for use in any situation that requires equipment to run efficiently at a high level without the risk of malfunctions from power surges.


The winding of the transformer offers an adjustment of +15 V, which provides you with the option to step voltages up or down. Lamination minimises electrical noise, and the coils are guarded against rust and humidity thanks to full varnish impregnation. The transformer comes with brackets and screws that allow you to fix it in place easily. You can also mount it on a DIN rail.


The transformer has undergone full electrical and flash testing to ensure it can withstand high voltages. You'll find it used to run 120 V North American electrical equipment on a 230 V UK power supply.

Features and Benefits

• Dimensions of 192 (length) x 172 (width) x 175 (depth) mm


• Operating frequency range of 50 to 60 Hz


• Power rating of 2500 VA


• Primary voltage rating of 15 to 400 V AC


• Secondary voltage rating of 115 V AC


• Weight of 26 kg


• Certified to BS EN 61340-5-1:2007 Electrostatic Control Standards

RS Pro Panel Isolation Transformers Datasheet

RS PRO Datasheet
