2904601, Phoenix Contact QUINT4-PS/1AC/24DC/10 Switch Mode DIN Rail Power Supply, 230V ac ac Input, 24V dc dc Output, 10A, Блок питания

Phoenix Contact Quint 4 Power Supply Units

The new generation of the TRIO POWER range of power supplies from Phoenix Contact are specially designed for use in machine building.
All functions and the space-saving design are tailored to the high requirements in this field.
The DIN Rail mountable PSU’s feature a robust electrical and mechanical design that ensures the reliable supply of all loads even under harsh ambient conditions.
For high system availability of all machines and systems, these new Trio power supply units offer a dynamic power boost, which starts even difficult loads with 150 percent of the nominal current for five seconds.

Features and Benefits

• Robust design
• Available in single and three phase
• IP20 protection
• Tool free push in connection
• High MTBF (Mean Time Between Failure) values of over 1 million hours
• Active function monitoring with DC OK LED
• Floating signal contact to ensure the safe supply of all connected 24 V DC loads
• Temperature range from -25°C to +70°C
• Din Rail mounting

Typical Applications

Quint PSUs can be used in control cabinets within the automotive industry or process technology to ensure uninterrupted production. Can be used in environments where there is corrosive gas, dust and 100% humidity due to its conformal coating.

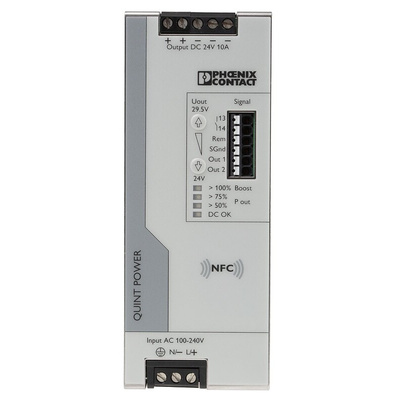

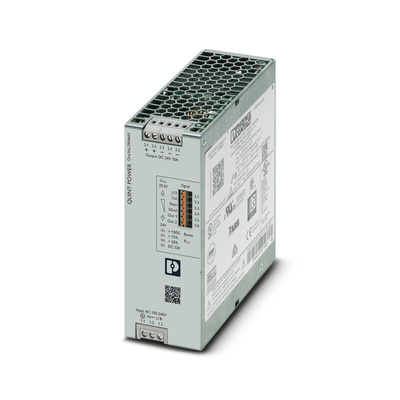

Phoenix Contact Switch Mode DIN Rail Power Supply, 240W Power Rating - QUINT4-PS/1AC/24DC/10 - 2904601

This high-performance power supply unit (PSU) from Phoenix Contact safely energises devices mounted on a DIN rail in residential and industrial applications. It features reliable SFB (selective fuse breaking) technology that trips circuit breakers individually, allowing loads connected in parallel to continue working. This solution lets you detect the fault and resolve it quickly and easily. The PSU has a robust design, with a metal housing that's corrosion-resistant, so you can use it for a long time without the risk of rust.
This component has a high level of immunity to voltage spikes, thanks to its integrated gas-filled surge arrester that prevents damage and enhances electrical safety. It also has a sensitive preventive function monitoring system that indicates critical operating conditions before an error occurs, making it easy to detect and resolve on time. This single-phase unit is commonly used in low voltage electrical and automation applications.

• Compact dimensions of 130 (height), 125 (depth) and 50mm (width) for space efficiency in small enclosures
• Dynamic boost mechanism to enhance heavy load starting
• Light weight of 900g for easy handling
• Integrated 8A fuse for short-circuit protection
