2904602, Phoenix Contact QUINT4-PS/1AC/24DC/20 Switch Mode DIN Rail Power Supply, 100 → 240 V dc, 110 → 250 V dc, Блок питания

Phoenix Contact Quint 4 Power Supply Units

The new generation of the TRIO POWER range of power supplies from Phoenix Contact are specially designed for use in machine building.
All functions and the space-saving design are tailored to the high requirements in this field.
The DIN Rail mountable PSU’s feature a robust electrical and mechanical design that ensures the reliable supply of all loads even under harsh ambient conditions.
For high system availability of all machines and systems, these new Trio power supply units offer a dynamic power boost, which starts even difficult loads with 150 percent of the nominal current for five seconds.

Features and Benefits

• Robust design
• Available in single and three phase
• IP20 protection
• Tool free push in connection
• High MTBF (Mean Time Between Failure) values of over 1 million hours
• Active function monitoring with DC OK LED
• Floating signal contact to ensure the safe supply of all connected 24 V DC loads
• Temperature range from -25°C to +70°C
• Din Rail mounting

Typical Applications

Quint PSUs can be used in control cabinets within the automotive industry or process technology to ensure uninterrupted production. Can be used in environments where there is corrosive gas, dust and 100% humidity due to its conformal coating.

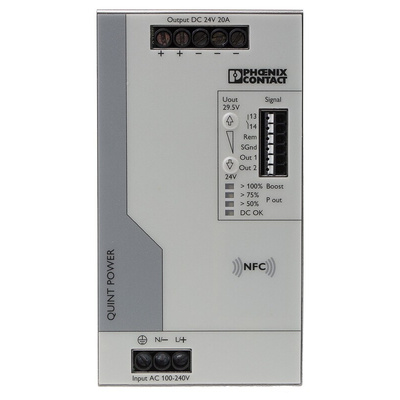

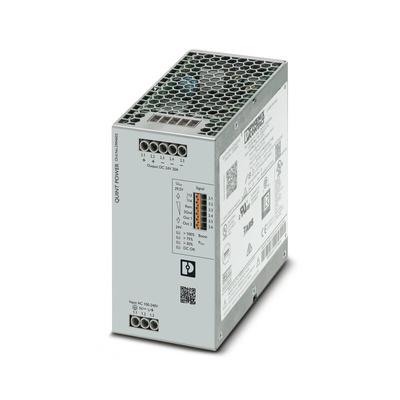

Phoenix Contact Switch Mode DIN Rail Power Supply, 480W Power Rating - QUINT4-PS/1AC/24DC/20 - 2904602

Use this hardwearing power supply unit from Phoenix Contact to energise DIN-rail-mounted components in railway control systems. The unit has a robust design and is ATEX (atmosphere explosible) approved for use in hazardous areas. It converts single-phase AC (alternating current) and DC (direct current) input voltages to a level (24V DC) that can be used by smaller devices linked to it. You can either connect this device in series or in parallel for increased capacity, making it a flexible choice to suit your circuit design specifications.
With a wide operating temperature range between -25°C and +70°C, this component is suitable for use in harsh environments. For electrical safety, it has an integrated 12A fuse that offers short circuit protection, safeguarding you from electric shocks. It also has a varistor and a surge arrester that prevent voltage spikes and enhance safety.

• Preventive function monitoring indicates critical operating conditions before errors occur to ease troubleshooting
• Light weight of 1.3kg for easy handling and minimal system strain
• SFB (selective fuse breaking) technology trips circuit breakers individually for easy isolation of fault areas
