2904620, Phoenix Contact QUINT4-PS/3AC/24DC/5 Switch Mode DIN Rail Power Supply, 400V ac ac Input, 24V dc dc Output, 5A Output,, Блок питания

Phoenix Contact Quint 4 Power Supply Units

The new generation of the TRIO POWER range of power supplies from Phoenix Contact are specially designed for use in machine building.
All functions and the space-saving design are tailored to the high requirements in this field.
The DIN Rail mountable PSU’s feature a robust electrical and mechanical design that ensures the reliable supply of all loads even under harsh ambient conditions.
For high system availability of all machines and systems, these new Trio power supply units offer a dynamic power boost, which starts even difficult loads with 150 percent of the nominal current for five seconds.

Features and Benefits

• Robust design
• Available in single and three phase
• IP20 protection
• Tool free push in connection
• High MTBF (Mean Time Between Failure) values of over 1 million hours
• Active function monitoring with DC OK LED
• Floating signal contact to ensure the safe supply of all connected 24 V DC loads
• Temperature range from -25°C to +70°C
• Din Rail mounting

Typical Applications

Quint PSUs can be used in control cabinets within the automotive industry or process technology to ensure uninterrupted production. Can be used in environments where there is corrosive gas, dust and 100% humidity due to its conformal coating.

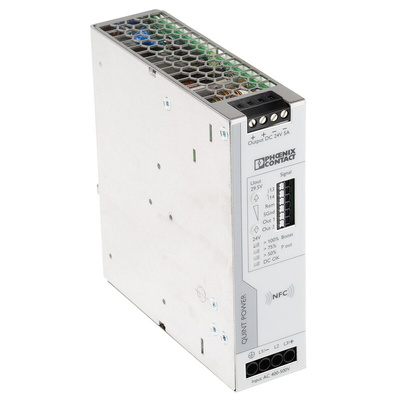

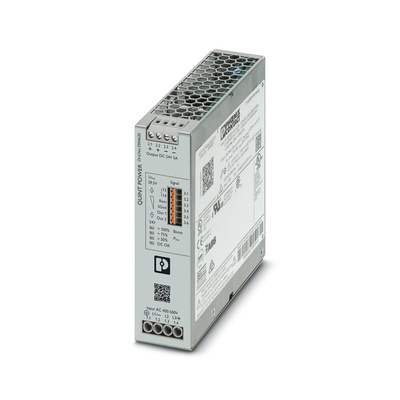

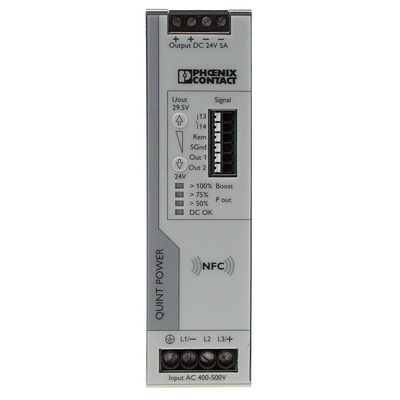

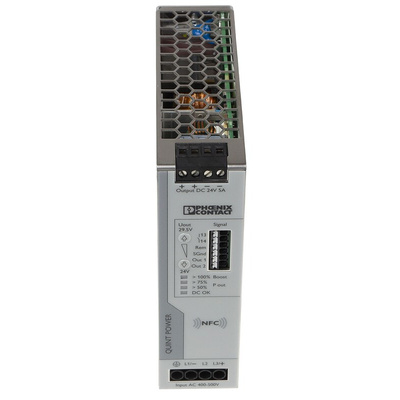

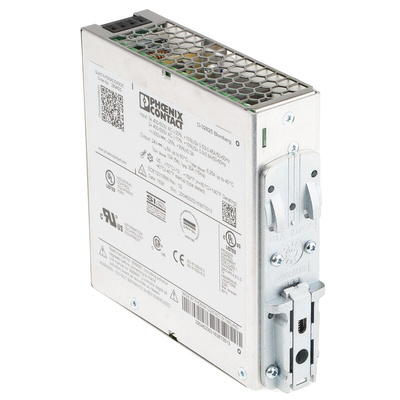

Phoenix Contact Switch Mode DIN Rail Power Supply, 400V AC Input, 24V DC Output - QUINT4-PS/3AC/24DC/5 - 2904620

This DIN rail mountable power supply from Phoenix Contact is specially designed for machine building. Thanks to its robust mechanical and electrical construction, it can achieve an MBTF (mean time between failures) of over a million hours, meaning you can rely on this power supply in the long term. It takes a 400V AC input and converts it to a 24V DC output, so it's suitable for powering appliances such as computers and TVs, as well as relays.
You can easily mount this power supply onto a DIN rail without tools by using the push-in connection. Its conformal coating means you can use it in humid environments or in the presence of corrosive dust and gas. As it has a dynamic power boost feature to deliver a five-second burst of current at 150% of the normal level, it's a reliable choice for starting difficult loads.

• LED indicator lets you monitor at a glance that the supply is functioning properly
• Operating temperature range of -25°C to +70°C makes it suitable for harsh environments
• Floating signal contact ensures the safety of connected loads
• IP20 (ingress protection) rating means it's touch-proof and resistant to dust
