RS PRO Solder Tag Board with 40 Contacts for Raspberry Pi, Клеммная колодка

Solder Tag Board for Raspberry Pi

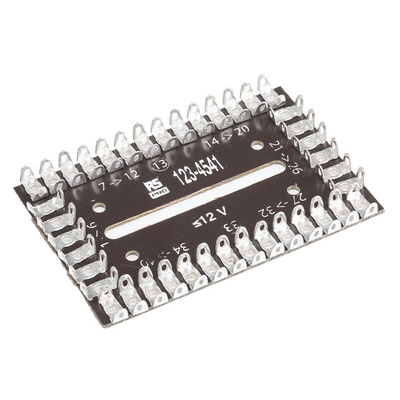

This solder tag board is designed to work with the Raspberry Pi. The terminals on the board match the pins on the Pi. With a total of 40 terminals it provides a simple means of soldering and de-soldering electronic components to the GPIO header when developing prototypes.

Ideal for electronics engineers developing prototypes and also helpful for electronics students and apprentices.

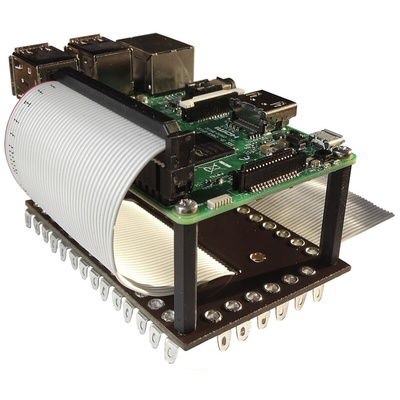

The holes in the tag board align with the mounting holes in the Pi allowing the tag board to be mounted beneath the Pi using an additional mounting kit consisting of 4 legs and 8 x 2mm Pozidriv screws. For the 4 leg mounting kit, please see RS 124-3364.

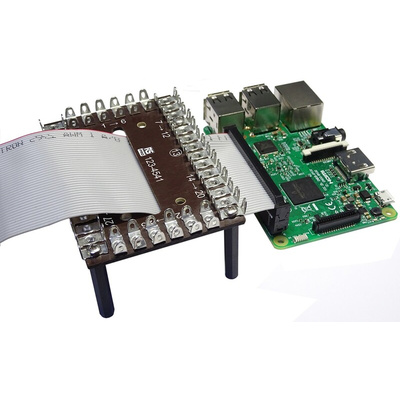

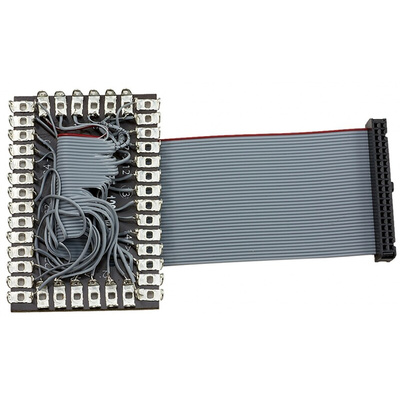

A central slot in the tag board allows a ribbon cable, connected to the Pi GPIO socket, to pass through. For a suitable ribbon with connector, please see RS 124-2929.

Advantages

Cheap to replace
Easy to make and break solder connections
Helps to unlock the full potential of the Raspberry Pi GPIO interface

Features and Benefits

• 40 Solder tag terminals corresponding to the 40 pins on the Raspberry Pi
• Easy to solder and keeps work away from the Pi
• High quality SRBP base
• Hot tinned tags
• Mounting holes and central slot
• Can be mounted beneath the Pi using mounting kit (available separately, see above)

RS Pro Solder Tag Board Datasheet
