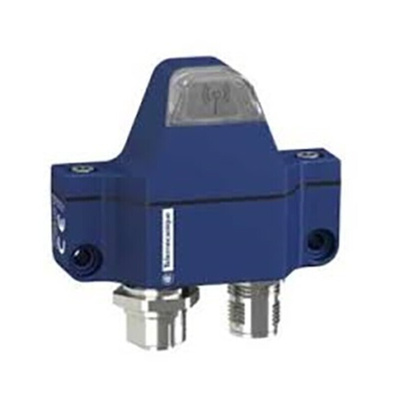

XZBWE112A24, Telemecanique Sensors OsiSense XC Series Transmitter for Use with Multi-Sensors, OsiSense XCKW Wireless & Batteryless

Telemecanique OsiSense XZBW Wireless Transmitters and Receivers

Telemecanique Lesswire XZBW series wireless transmitters and receivers for use with a wide range of sensors. This range includes transmitters and receivers which communicate via 2.4 GHz radio transmission. Reduced cabling benefits applications where wiring or wire maintenance is not physically or economically possible. Equipped with a universal M12 connector input, the XZBW series is compatible with all PNP and NPN sensors and limit switches.

Application Information

The XZBW transmitters provide power to the attached sensor via the universal M12 connector. The sensors signal is then sent to the XZBW receiver, followed by an acknowledgement sent back to the sensor.
Each transmitter has a unique identification code, which enables optimum management of each one. To incorporate this code, a simple teach sequence can be performed on the receiver.

Features and Benefits

Two transmitters can be paired to one receiver
Reduced cabling and easy set-up
Reliable, real-time connection
Transmitters feature a M12 connector input
Free field radio range up to 100 m; Typical industrial environment radio rang up to 25 m

Datasheet

Wireless and batteryless pushbuttons catalogue
