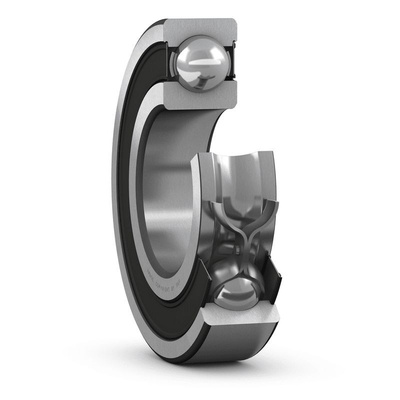

SKF 6308-2RS1/C3GJN Single Row Deep Groove Ball Bearing- Both Sides Sealed 40mm I.D, 90mm O.D, Шарикоподшипник

SKF Deep Groove Ball Bearing, Plain Race Type, 40 mm ID - 6308-2RS1/C3GJN

To effectively handle large loads and fast operational speeds, choose this single-row deep groove ball bearing from SKF. It's a versatile choice as it can accommodate both radial and axial loads. Nitrile rubber sealing on both sides actively prevents dirt, debris and liquids from getting in. The plain race bearing comes pre-lubricated with grease suitable for high temperatures to ensure effortless maintenance. High-grade balls and advanced raceways give you smooth, quiet operation and a long service life.

• Ceramic balls for high-temperature operations
• Steel cage for corrosion resistance
• Dynamic load rating of 42.3 kN
• Inner diameter of 40 mm
• Outer diameter of 90 mm
• Width of 23 mm
• Parallel bore type
• Static load rating of 24 kN
• Operating temperature range of -30°C to +150°C
• Radial internal clearance of C3 (normal)

Application Information

• Agricultural industry
• Food processing
• Medical and pharmaceutical industry
• Wind energy

What is the advantage of deep groove ball bearings?

Deep groove ball bearings are the most commonly used ball bearings as they offer low vibration and quiet operation. They can handle axial and radial loads and require minimal maintenance.
