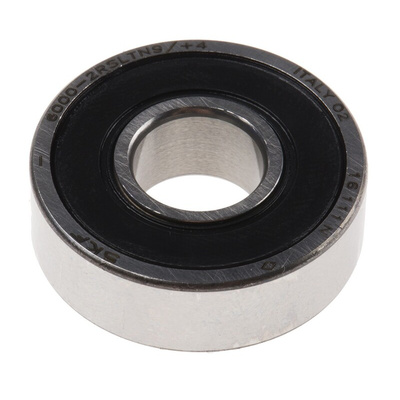

SKF 6002-2RSLTN9/C3VT162 Single Row Deep Groove Ball Bearing- Both Sides Sealed 15mm I.D, 32mm O.D, Шарикоподшипник

1234843
Номер производителя: 6002-2RSLTN9/C3VT162Производитель: SKF
Цена за шт.
2926.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

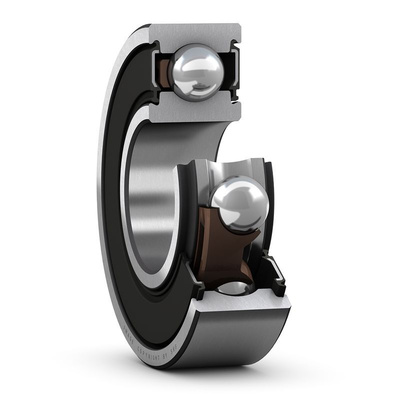

SKF High Temperature Deep Groove Ball Bearing

SKF Ball Bearings are designed to deliver increased reliability, reduced complexity and decreased environmental impact in high operating temperatures.

Features:

• Excellent performance in hot conditions, dry environments and low rotational speed applications
• Temperature range -30°C to 150°C
• Suitable for high and very high speeds
• Steel/Ceramic ball material
• Plain race type
• Low friction
• Available in many designs, variants and sizes

Why choose Deep Groove Ball Bearings?

• For their versatility - channelling radial and axial loads they are widely used in many industries
• Cost efficient - due to low friction torque the temperature remains low therefore reduces the energy cost of running in equipment such as the conveyor belt
• Low maintenance - no additional lubrication after installation

Applications:

• Agricultural industry
• Food processing
• Machine Tools
• Material handling
• Medical/Pharmaceutical
• Printing
• Wind energy

What is the inner ring diameter?
A range between 6 mm to 40 mm

What is internal/external design?

• 2RS1 - Contact seal NBR on both sides 2RSH - Contact seal NBR on both sides
• Z, 2Z - Shield on one or both sides
• 2RSL - RSL low-friction contact seal on both sides of the bearing
• 2RZ - RZ low-friction non-contact seal on both sides of the bearing
• 2ZNR - Shield on both sides, snap ring groove in the outer ring, with snap ring
• NR - Snap ring groove in the outer ring, with an appropriate snap ring
• E - Reinforced ball set

Cage Design

• TN9 - Glass fibre reinforced polyamide 66 cages, rolling element centred
• Stainless steel

Lubrication

• GJN - Grease with a polyurea thickener of consistency 2 to the NLGI scale for a temperature range -30°C to +150°C (normal fill grade) VT162 - Lubricated with Klueber Isoflex Topas NB52 grease
• WT - Grease with a polyurea thickener of consistency 2 to 3 to the NLGI Scale for a temperature range –40°C to +160 °C
• LHT - Grease with a lithium thickener of consistency 2 to 3 to the NLGI Scale for a temperature range –50°C to +140 °C
• HT - Grease with a polyurea thickener of consistency 2 to 3 to the NLGI Scale for a temperature range –40°C to +150 °C (normal fill grade)

Accuracy/Clearance

• C2 - Radial internal clearance smaller than normal C3 - Internal clearance greater than normal
• C4 - Radial internal clearance greater than C3
• C5 - Radial internal clearance greater than C4

SKF Ball Bearing, Deep-Groove Bearing Type, Sealed, 15mm ID, 32mm OD - 6002-2RSLTN9/C3VT162

Need a ball bearing you can rely on in extreme industrial environments? This deep-groove ball bearing from SKF has an operating temperature range of -30°C to +150°C, with a nitrile rubber seal on both sides to prevent the lubricant from drying out. The sealed ends keep the balls and race safe from contamination, making this a suitable choice for dusty and dirty environments and meaning there's no need to relubricate.

Features & Benefits

• Fibreglass-reinforced nylon cage combines, elasticity, light weight and low friction to support high acceleration and minimise vibration
• Parallel bore means you can fit it easily onto a shaft without the need for a bearing sleeve
• Steel construction combines strength with corrosion resistance

Applications

• Agricultural equipment
• Machine tools
• Pharmaceutical production

Why choose a deep-groove ball bearing?

Deep-groove ball bearings are the most widely used type of ball bearing thanks to their versatility and efficiency. They can support a limited axial load along with a high radial load. They also operate at lower temperatures than other types of bearing, which extends their service life. Their quiet operation ensures a safe and comfortable workplace.

Deep Groove Ball Bearings

Техническая спецификация
pdfDatasheet
pdfSKF Bearing Designations
pdfDatasheet - 6002-2RSLTN9/C3VT162
pdfCatalogue - Rolling Bearings
pdfCatalogue - SKF Coatings
pdfBrochure - Stainless Steel Deep Groove Ball Bearings
pdfInstruction Sheet - SKF TMMK
Диаметр - внутренний:
15мм
Динамическая грузоподъемность:
5.85кН
Зазор подшипника:
C3
Код части подшипника:
6002
Количество рядов:
1
Материал:
Сталь
Материал клетки:
Non-metallic
Материал шара:
Сталь
Наружный диаметр:
32мм
Подшипник - тип:
Single Row Deep Groove Ball Bearing
Серия подшипников:
0 Extra Light
Статическая грузоподъемность:
2.85кН
Тип кольца:
Plain
Тип отверстия:
Parallel
Уплотнительное устройство:
Both Sides Sealed
Ширина кольца:
9мм
