GSM220A24-R7B, MEAN WELL 221W Power Brick AC/DC Adapter 24V dc Output, 0 → 9.2A Output, Блок питания

Mean Well Desktop Power Supply

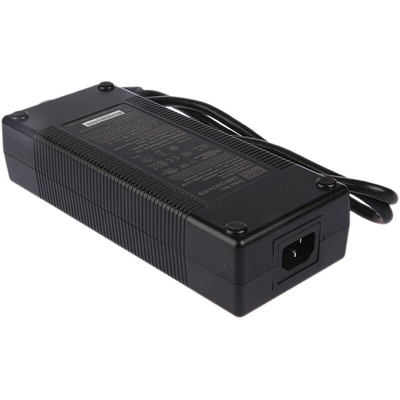

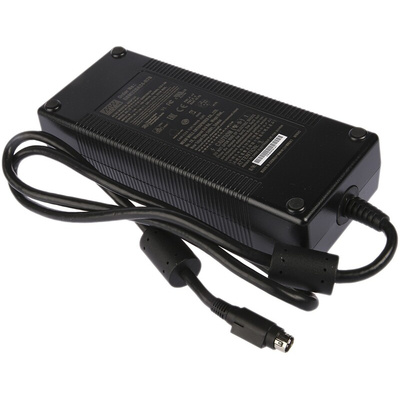

The Mean well GSM series desktop power supply is the latest invention with a high-quality AC/DC adapter and a voltage rating of 24VDC. This range of power supply provides 221W of continuous output power in a high-quality compact enclosure suitable for many general power applications. It has an input frequency of 47Hz to 63Hz. While the input voltage range is 80VAC to 264VAC, its maximum input current is 120A. This product is equipped with a 3-pin standard IEC320-C14 power plug. This series is designed to adhere to 2*MOPP international medical standards, offering ultra-low leakage current.
The GSM series is an efficient range, boasting up to 94% efficiency coupled with an extremely low no-load power consumption below 0.15W. It has also integrated a "supreme" feature into the GSM series, enabling the power supply to save energy when it's either under the operating mode or standby mode.

Features and Benefits

Output current is 9.2A
Complies with level V efficiency rating
Class I power (With earth pin)
Low leakage current is less than100uA
Integrated active PFC function
LED indication of power status
Fully enclosed plastic casing
Industry standard protection such as short-circuit, overload, over voltage and over temperature
Working temperature is ranges between -30°C and 70°C

Applications

Mobile workstations
Breath machines
Medical computer monitors
Oral irrigation

Certifications

Medical safety approved
ANSI/AAMI ES60601-1
TUV EN60601-1
EN55011 (CISPR11) class B
EN61000-3-2,-3
FCC PART 15 class B
EN61000-4-2,3,4,5,6,8,11
EN55024
EN60601-1-2
EN61204-3 medical level, criteria A

Mean Well GSM220A Series Datasheet
