VSPI-4F2111, Sick CMOS, White Light, Monochrome Digital Vision Sensor- 640 x 480 pixels, M12 Connector, Датчик изображения

Sick Inspector I40 Vision Sensor Kit - VSPI-4F211

Sick Inspector I40 Vision Sensor kit provides an intelligent vision solution in an easy to use vision sensor package. The vision sensor has features to solve inspection at high speed, the vision sensor incorporates locating and positioning tools as well as edge detection and pattern matching functions. Sick's I40 sensor does all this at VGA resolution whilst storing data and images over standard communications protocols.

Features & Benefits

• 2D, snapshot and image analysis technology
• The systems dimensions are L100mm x W53mm x H38mm
• Features 4 24 V digital inputs
• The output current is 100 mA
• Simple setup - supplied software enables the inspector a plug and play user-friendly device that is configured for application within minutes
• The perfect solution for storing images through the image store capability
• FTP, TCP/IP & Ethernet I/P comms on board
• Powerful inspection tools - scale, rotation, position changes High speed/High-resolution operation
• Switchable multiple configurations
• Emulator mode to test and simulate
• For more specification information of the vision system, please refer to the datasheet

Supplied with

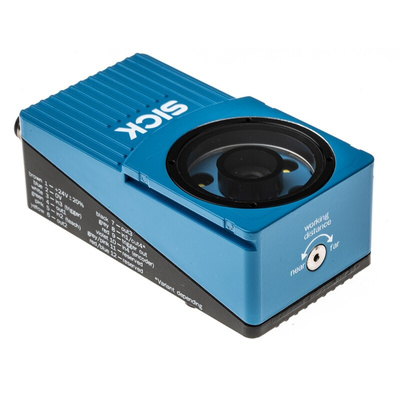

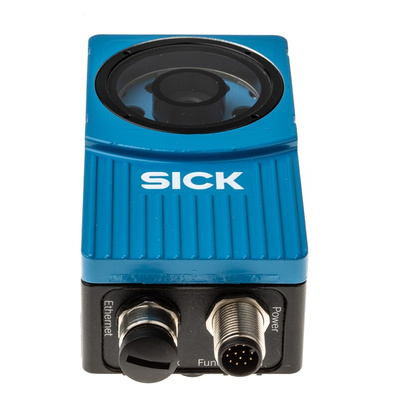

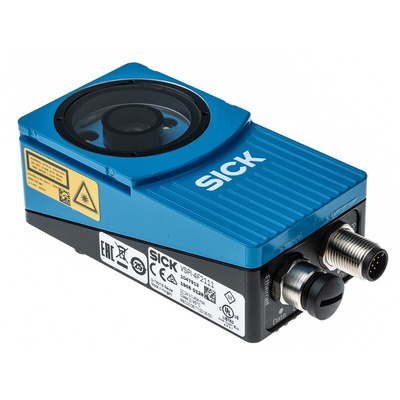

• I40 Vision Sensor

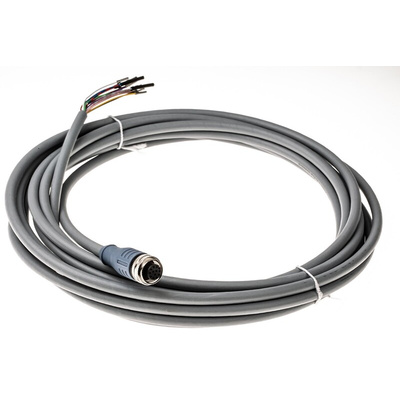

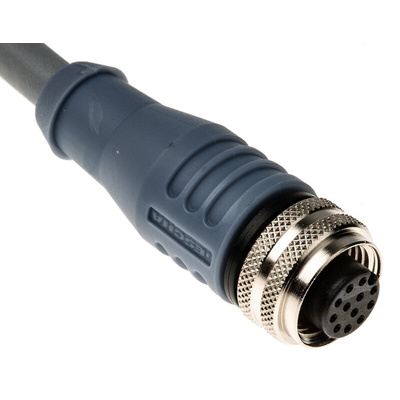

• Power cable

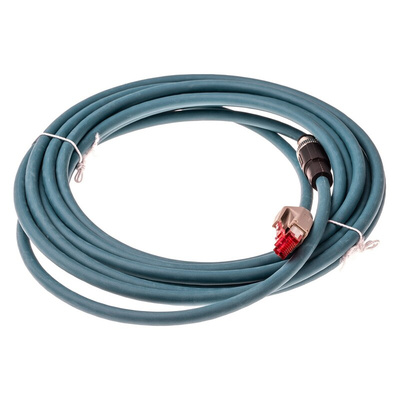

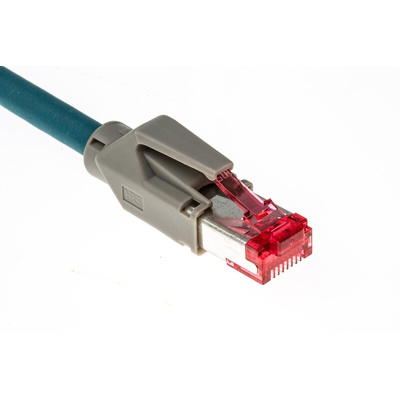

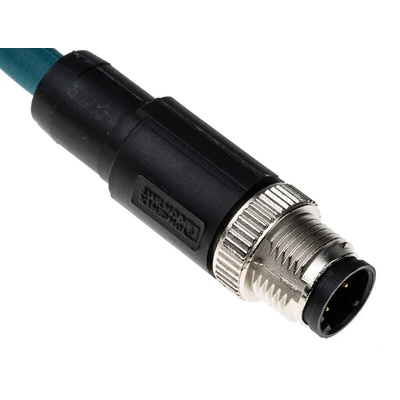

• Ethernet cable
• Bracket
• 6, 10, 16 mm lenses

VSPI-4F211 Datasheet
