MINIMSDM200, Amphenol Industrial 2 Stage Lever EV Service Disconnect For Use With HV Battery Pack, Разъем

Mini MSD Plug with HVIL

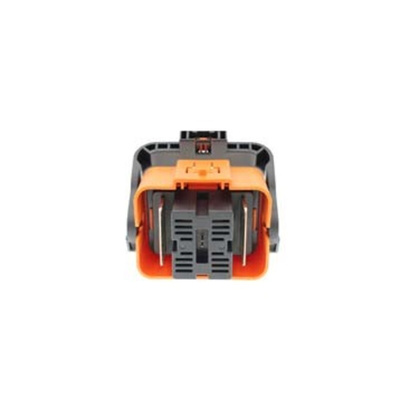

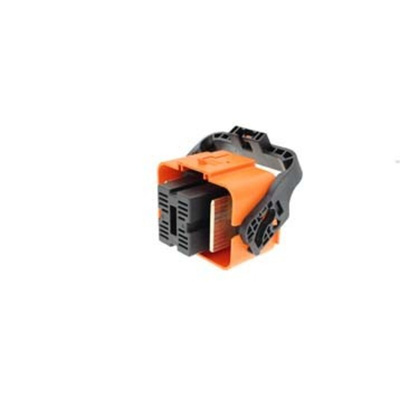

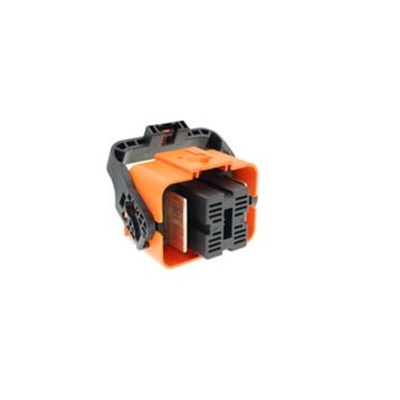

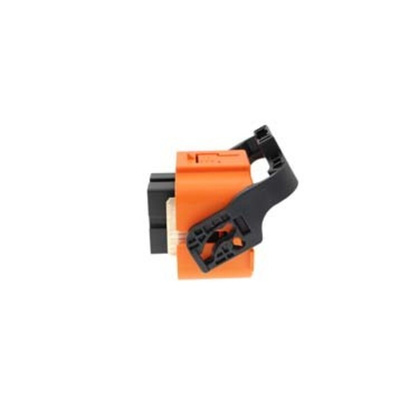

From Amphenol, this mini Manual Service Disconnect (Mini MSD) is for use in charging Plug In Hybrid Electric Vehicles (PHEV) and features a High Voltage Interlock Loop (HVIL). The plug features a two-stage lever to open the HVIL circuit prior to separation of HV contacts. The MSD presents a disconnect for internal high voltage battery packs without the need for specialist tools, while protecting the battery from short circuit.

With a high degree of ingress protection, this Mini MSD offers a safe and reliable solution for PHEV servicing. The mini MSD presents a more compact and cost effective alternative to the standard MSD.

Features and Benefits:

• 1 x integrated internal HVIL
• Unique cooling structure
• Dual-channel design lowers temperature rise
• Receptacle can be front or rear mounted
• Durability of over 50 mating cycles
• Mates to IP67, IP6K9K
• Operating Temperature of -40°C to 70°C
• Standards: USCAR-2. USCAER-37, LV-215

Typical Application

The MINIMSDM200 mini manual service disconnects plug with a 200A fuse is a tool-free solution for disconnecting the internal high voltage battery pack and protecting it from short circuit. These tools are essential for service technicians and emergency response teams as they provide protection when dealing with high voltage electric vehicles.

FAQs
What is IP67 Rating?
An IP67 rating means this housing can withstand any dust (fully dust tight, even against sand) and can withhold an immersion in water for up-to 1m. It can also handle powerful water jets.
