MINIMSDF000R, Amphenol Industrial 2 Stage Lever EV Service Disconnect For Use With HV Battery Pack, Разъем

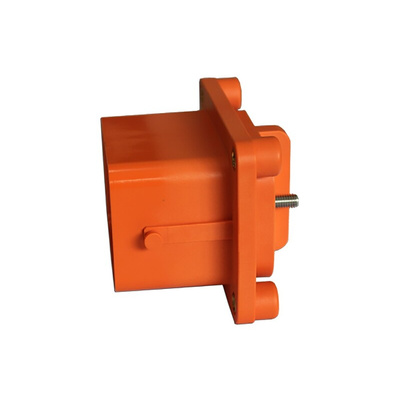

Mini MSD Receptacle with HVIL

From Amphenol, this mini Manual Service Disconnect (Mini MSD) is for use in charging Plug In Hybrid Electric Vehicles (PHEV) and features a High Voltage Interlock Loop (HVIL). The MSD presents a disconnect for internal high voltage battery packs without the need for specialist tools, while protecting the battery from short circuit.

With a high degree of ingress protection, this Mini MSD receptacle offers a safe and reliable solution for PHEV servicing. The mini MSD presents a more compact and cost effective alternative to the standard MSD.

Options available:
MINIMSDF000R rear mount – 123-5211
MINIMSDF000F front mount – 123-5212

Features and Benefits:

• Durability of over 50 mating cycles
• Mates to IP67, IP6K9K
• Operating Temperature: -40°C to +70°C
• Standards: USCAR-2. USCAER-37, LV-215
• Voltage rating: 1500V

IP67 Rating:
An IP67 rating means this housing can withstand any dust (fully dust tight, even against sand) and can withhold an immersion in water for up-to 1m. It can also handle powerful water jets.

Typical Application

This mini manual service disconnects is a tool-free solution for disconnecting the internal high voltage battery pack and protecting it from short circuit. These tools are essential for service technicians as they provide protection when dealing with high voltage electric vehicles.
