1-2295018-2, TE Connectivity USB Connector, SMT, Socket 3.1 C, Solder, Straight- Single Port IPX4, Разъем

1235255
Номер производителя: 1-2295018-2Производитель: TE Connectivity
Цена за шт. (норма упаковки 5 шт)
389.76 руб. *
Количество 5+
Цена 389.76 руб.

Срок поставки: 4-6 недель

+

* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

What is USB C?

USB C (also known as USB type C) is a standard of connector. It is one of the latest USB versions and consists of a 24 pin connector system. It offers a slim design which is idea for smaller, portable devices.
One of the benefits of USB C is that a plug can be inserted either way round, it does not have a particular orientation like traditional USB ports. USB 3.1 is a standard protocol for USB C connectors. USB 3.1 offers transfer speeds of 10 Gbps, as opposed to USB 3.0 which offers 5 Gbps.

Why choose TE USB C connectors?

Easy to use
Accepts plug in either direction
10 Gbps data transfer speed
Added board retention for a robust design
Eliminates unwanted EMA (electromagnetic interference)
Backward compatibility to other USB adapters when used alongside cables and adapters
Delivers data, power audio/video through a single connection
Increases power capability up to 100 W at 20 V
Supports high-speed data transfer

Uses for USB C Connectors:

Data centres
Factory automation
Tablets
Smartphones
PCs and Laptops
Power packs and chargers
Business equipment
Lighting

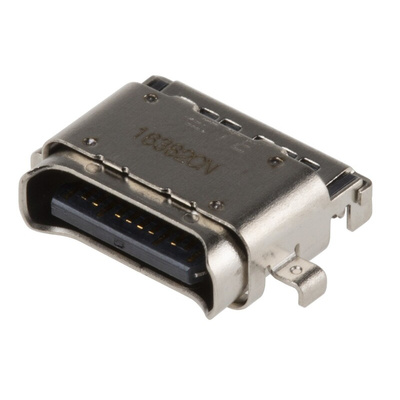

The TE 1-2295018-2 USB C receptacle is a dual-row surface mounted (SMT) device made with a stainless steel shell and copper alloy contacts. TE 1-2295018-2 features USB 3.1 Gen 1 protocol.

Техническая спецификация
pdfUSB Type C dual row receptacle drawing
pdfUSB Type C Overview data sheet
Версия USB:
3.1
Количество портов:
1
Концевая заделка:
Solder
Материал контактов:
Copper Alloy
Номинал тока:
6.25A
Номинальное напряжение:
30.0 V
Ориентация корпуса:
Straight
Рабочая температура - максимальная:
+85°C
Рабочая температура - минимальная:
-30.0°C
Род:
Female
Степень защиты IP:
IPX4
Тип USB:
C
Тип монтажа:
Surface Mount
