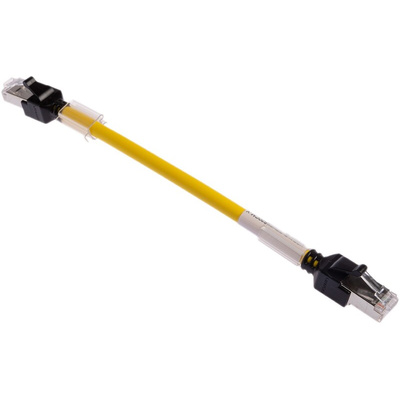

XS6W-6LSZH8SS20CM-Y, Omron Cat6a Male RJ45 to Male RJ45 Ethernet Cable, FTP, STP, Yellow LSZH Sheath, 200mm, Low Smoke Zero Halogen (LSZH), Кабель

XS6W Series Cat6a Industrial RJ45 Cable Assemblies

From Omron, a series of high performance LSZH (low smoke zero halogen) Cat6a Ethernet cable assemblies. The patch cables have standard connectors and are ideally suited to in-cabinet applications. Constructed from 5.8 mm OD 4-pair 27 AWG cable featuring double shielding with overall braiding and individual foil shields on each pair to reduce EMC interference. Available in blue, yellow and green LSZH jackets in various lengths.

Features and Benefits

Cat6a performance
LSZH cable
Overall braiding
Individual foil shielding on each pair
Reduces EMC interference
Ideal for in panel applications
IP20
10 Gbit up to 500 MHz

Applications

PCs
Network equipment
Servers
Data centres
Industrial automation
Robotics

OMRON Ethernet Cable, IP20 Rating, Straight-Through Type - XS6 Series - XS6W-6LSZH8SS20CM-Y

When you need to keep data flowing between devices, hook up this handy Ethernet cable from OMRON. It comes with a standard male RJ45 connector at each end for wide compatibility with in-cabinet applications. You can use the cable to link network-capable peripherals like routers, modems and PCs. A thermoplastic LSZH sheath gives fire safety a boost by keeping smoke and halogen emissions under control, even when exposed to high heat sources. Thanks to individual foil shielding to block EMI, you'll enjoy a crystal-clear signal.

Features & Benefits

• Gold-plated contacts are highly conductive for a reliable connection
• IP20 rating means it's safe to touch and protected from objects up to 12.5mm in size
• Withstands voltage up to 1000V DC for use with demanding industrial equipment
• Broad operating temperature range between -20°C and +60°C make it suitable for harsh conditions
• LAN Category 6a supports up to 10Gbit of data at transmission speeds up to 500MHz

Applications

• Data centres
• Computer networking systems
• Robotics engineering

How long is this Ethernet cable?

It's 200mm in length, giving you the reach you need to link devices at short range inside your data cabinet.

Omron Electronics Range

Industrial Ethernet Cables Datasheet
