R2000-Starter KIT, Robustel R2000 2G, 3G, 4G, Ethernet, WiFi, 2 Ports

Cellular Modem Router, GoRugged R2000 Starter Kit, Robustel

The Robustel R2000-3P Starter Kit has everything you need for testing and evaluating 3G wireless connectivity in industrial applications. The Robustel R2000 2G/3G cellular router has two Ethernet ports which can be configured to work independently. This kit includes all necessary accessories to operate from a D.C. or AC power source in an industrial, development or remote setting.

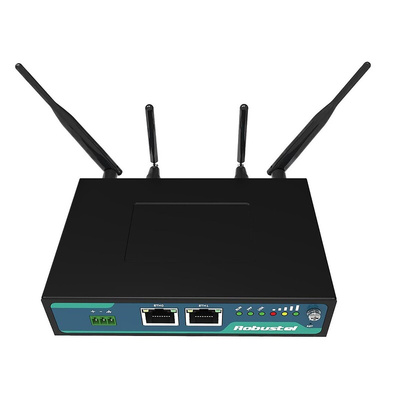

The Robustel GoRugged R2000 is an industrial grade cellular router to enable M2M IoT Gateway applications working with 2G/3G (GSM/GPRS/EDGE/HSPA+).

The Robustel R2000 features dual SIM slots for redundancy and continuous connection.

Applications include Cash Point, vending machine connectivity, retail POS, IP video surveillance and signage.

Features

Kit Includes

- Dual SIM for continuous connection
- Wireless LAN: 802.11 b/g/n
- Ethernet Port: 2 x LAN
- Power Supply 9 V dc to 26 V dc
- Dimensions: 127.5 x 82.5 x 29.5 mm
- Approval & Detective: CE, R&TTE, RoHS, WEEE
- Operating Environment -40° to 85°C / up to 95% Relative Humidity
RF Operating Frequencies
- WCDMA/UMTS/HSPA+ (3G Cellular): 900/2100 MHz
- GSM/GPRS/EDGE (2G fall-back Cellular): 850/900/1800/1900 MHz

- Robustel R2000-3P Wireless Cellular Router (RS 123-6250)
- Robustel Mains Power Supply with multi-adapter regional attachments (RS 902-6830)
- Robustel wall mount bracket (RS 902-6834)
- Magnetic-mount antenna with coaxial RF cable (RS 123-6248)
- Direct-Mount blade antenna (RS 123-6249)
- Ethernet Cable and Documentation CD

Robustel Modem Router Kit

The Robustel modem router kit includes all the necessary accessories to operate from a DC or AC power source in an industrial, development or remote setting. The Robustel GoRugged R2000 is an industrial-grade cellular router to enable M2M IoT gateway applications working with 2G/3G (GSM/GPRS/EDGE/HSPA+). It features dual SIM slots for redundancy and continuous connection.
Kit Includes
-Dual SIM for continuous connection
-Wireless LAN: 802.11 b/g/n
-Ethernet Port: 2 x LAN
-Power Supply 9 V dc to 26 V dc
-Dimensions: 127.5 x 82.5 x 29.5 mm
-Approval & Detective: CE, R&TTE, RoHS, WEEE
-Operating Environment -40° to 85°C/up to 95% Relative Humidity
RF Operating Frequencies
-WCDMA/UMTS/HSPA+ (3G Cellular): 900/2100 MHz
-GSM/GPRS/EDGE (2G fall-back Cellular): 850/900/1800/1900 MHz
-Robustel R2000-3P Wireless Cellular Router (RS 123-6250)
-Robustel Mains Power Supply with multi-adapter regional attachments (RS 902-6830)
-Robustel wall mount bracket (RS 902-6834)
-Magnetic-mount antenna with a coaxial RF cable (RS 123-6248)
-Direct-Mount blade antenna (RS 123-6249)
-Ethernet Cable and Documentation CD

Features and Benefits

The Supply voltage is between 9VDC and 26VDC
Dual SIM redundancy for continuous cellular
connections
supports 2G/3G/4G.
Various interfaces: 2xLAN/1xLAN, 1xWAN, Wi-Fi.
WAN: static, PPPOE and DHCP client.
Multiple links backup and ICMP detection.
VPN tunnel: IPsec/OpenVPN/GRE.
Auto reboot via SMS/Timing.
Flexible Management methods: Web/SMS/CLI.
Firmware upgrade via Web/CLI/SMS
Advanced Firewall: filtering, port mapping, DMZ
Supports DDNS
Supports VRRP
Supports SNMP report events which include system
start-up, system reboot, system time update etc.
The metal enclosure can be mounted on a DIN-rail,
on the wall or be put on the desktop
Built-in Watchdog, Timer

Applications

Cash point
Vending machine connectivity
Retail POS
IP video surveillance and signage

Certifications

CE certified
R&TTE certified
WEEE certified
