Fluke Networks FI-500 Single Mode & Multimode Fiber Inspection Scope

Fluke Networks Fibre Optic Test Equipment

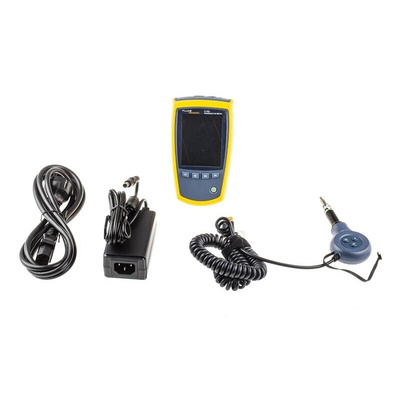

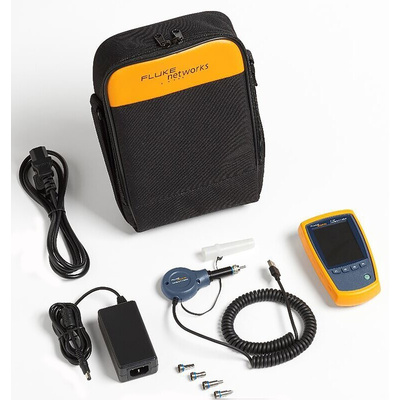

The Fluke Networks FI-500 fibre optic test equipment helps in getting rid of the hassle associated with inspecting fibre end faces, especially in low light and high cable density situations. This test equipment is designed to simplify the inspection process. It fills the gap between a manual scope and a fully automated inspection scope. It has the simplicity and practicality of a manual inspection scope along with advanced features to reduce troubleshooting and inspection time. It is supplied with a FiberInspector probe, display, 4 UPC tips, case, rechargeable batteries and universal power adapter.

Features and Benefits

Port Bright a built-in flashlight that illuminates dark areas and dense panels
Autofocus feature for stable images in few seconds

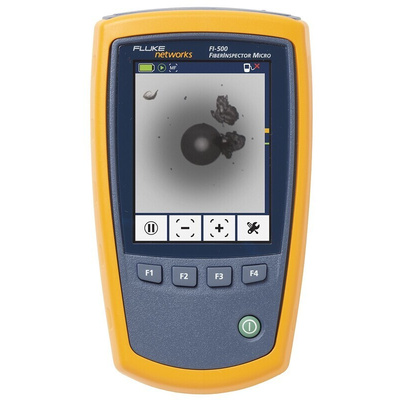

Large display to view single-mode and multimode fibre end faces
Includes 4 UPC tips (LC, SC, 1.25mm and 2.50mm)

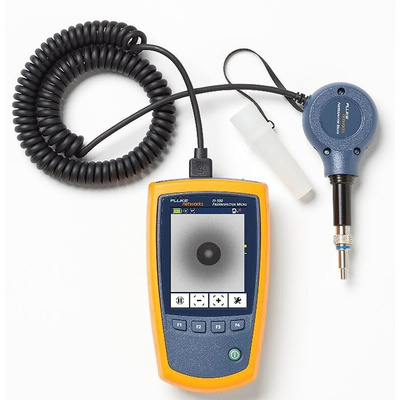

The small-profile probe fits into tight spots and features push button controls for simple operation
APC tips available
3.2in TFT LCD display with resolution 320 x 240
Display magnification options are 1x, 2x, 4x
Display Fps is greater than or equal to 12
2 rechargeable NiMH batteries for display with rating 1.2V and 2700mAh
Power adapter input rating for display is 100VAC to 240VAC ±10% at 50/60Hz with output of 6VDC and 3A
Probe magnification with 200x zoom function has 1x, 2x and 4x settings
Probe 5MP camera with CMOS sensor
Probe field with view of 610μm x 460μm
Probe resolution is 1μm
Light source through LED has life greater than 100000 hours
Coaxial blue LED for end face Illumination
2 white LEDs for port Illumination
Power to probe is supplied through the USB interface
Probe video output through USB 2.0 interface

Applications

Measure and locate high loss splices
Measure and locate high loss connections and breaks
Locate the end of a fibre
Find potential sources of errors caused by reflectance from dirty or poor connections
Detect live optical signals before it begins testing

Certifications

IEC 61010-1
IEC 62133
