RS PRO Bench Power Supply, , 220W, 3 Output , , 0 → 32V, 3.2A, Блок питания

1236467
Производитель: RS PRO
Цена за шт.
59520.00 руб. *

Срок поставки: 4-6 недель

+

* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

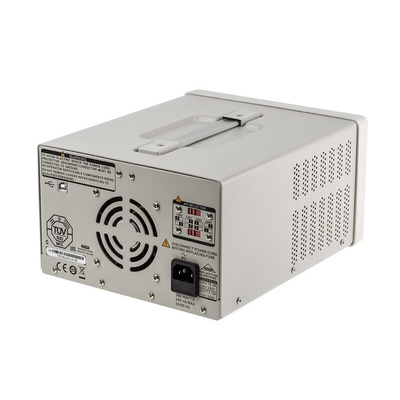

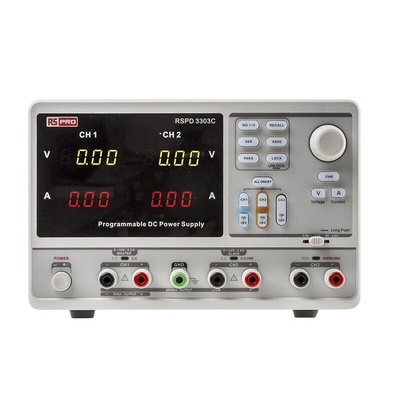

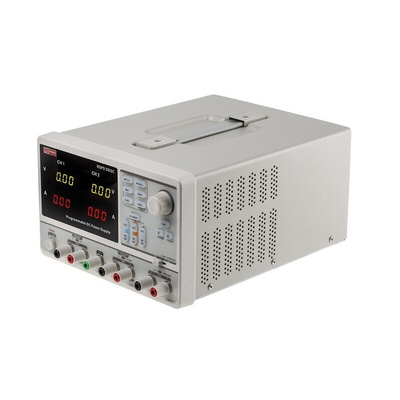

RS PRO Programmable Linear Bench Power Supply

From RS PRO, comes a range of high quality and great value programmable linear bench power supplies with LED display screens. Manufactured to industry standards these feature-packed bench power supplies are an essential solution for anyone who carries out a lot of electronics or other powered projects on your bench and needs a reliable source of power at different voltages.

These DC power supplies have three independent outputs (two sets of adjustable voltage and a fixed set of selectable voltages) as well as three available operation modes - independent, series, parallel. Series and parallel functions allow two channels to be easily combined into one output with more power output ability, doubling the supplied voltage or current. Each of the 3 channel’s outputs can be turned on/off independently or all 3 turned all-on/all-off simultaneously.

Features and Benefits:

  • Output Voltage - 0 → 32V

  • High resolution LED display; 32 V full scale, 4digits; 3.2 A full scale, 3digits

  • Intelligent fan for temperature control which effectively reduces noise

  • 00 V/120 V/220 V/230 V compatible design, to meet the needs of different power grids

  • Program Accuracy - V: ±(0.5% of reading+2digits)

  • Maximum Temperature +40 °C

  • USB Interface

  • PC software to realize the real-time control through USBTMC (USB Test & Measurement Class).

What are bench supplies used for?

This type of power supply is used to provide DC (direct current) voltage to a device under test
such as products being validated or a circuit board. Linear power supplies have the advantage of being able to output a very high frequency and is used for an application that needs delicate analog circuitry powering.

Applications

These power supplies have a variety of application use such as;

  • Quality Control and Test

  • Debugging in R&D

  • Production /Automatic Test

  • Education

Why choose RS PRO?

RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions.

Supplied with

Quick start guide, product certificate, USB cable, CD (including EasyPowercomputer software), power cord

Техническая спецификация
pdfDatasheet
pdfQuick Start Manual
Входной разъем:
IEC 320
Выходной разъем:
Binding Post Terminal
Выходной ток:
3.2A
Количество выходов:
3
Количество дисплеев:
2
Максимальная температура:
+40°C
Минимальная температура:
0°C
Мощность номинальная:
220W
Напряжение выходное:
0 → 32V
Напряжение питания:
230V ac
Тип:
Programmable Linear Power Supply
Тип стендового блока питания:
Programmable DC Power Supply
Цифровой/аналоговый:
Digital
