RS PRO RSDS 1052 DL + Bench Digital Storage Oscilloscope, 50MHz, 2 Channels With RS Calibration

1236602
Производитель: RS PRO
Цена за шт.
78528.00 руб. *

Срок поставки: 4-6 недель

+

* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

RS PRO RSDS1000CML+/DL+ Series Digital Storage Oscilloscopes (DSO)

RS PRO RSDS1000CML+/DL+ Series is a dual-channel universal digital oscilloscope available in 50 MHz, 70 MHz, 100 MHz and 150 MHz bandwidth models.


Options available:

  • 1236435 - 50MHz,2 channels

  • 1236436 - 70MHz,2 channels

  • 1236437 - 100MHz,2 channels

  • 1236438 - 150MHz,2 channels




All models have a 7 inch (177.8 mm) TFT LCD (800 x 480) screen which provides the space for better seeing and analysing waveform details. The RSDS1000CML+ models include a 2 Mpts memory depth which helps to ensure accurate waveform resolution and to capture longer signal lengths.
Along with a 1 GSa/s sampling rate, the SDS1000CML+ supports 32 parameters and common mathematical operations to speed up complex and/or repetitive measurements. The RSDS1000DL+ model has 32 Kpts memory depth and 500 MSa/s sampling rate.

Features and Benefits

  • Choice of 50 MHz,150 MHz, 100 MHz and 70 MHz bandwidth models

  • Real-time sampling rate up to 1 GSa/s (depending on choice of model), equivalent-time sampling rate up to 50 GSa/s

  • Memory depth to maximum 2 Mpts (depending on choice of model)

  • Trigger types Edge, Pulse, Video, Slope, Alternate

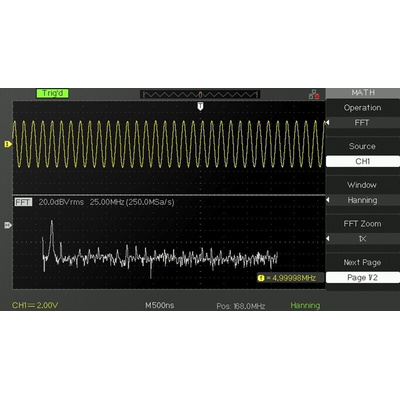

  • Waveform math functions+, -, *, /, FFT

  • 6 digit frequency counter

  • Supports multi-language display and embedded online help

  • Screensaver from 1 minute to 5 hours

  • Digital filter and waveform recorder function

  • Shortcut storage function key

  • 7 inch TFT LCD display with 800 x 480 resolution

  • Multiple interfaces USB Host, USB Device (USBTMC), LAN (VXI-11), Pass / Fail

  • Dimensions 323.1 x 135.6 x 157 mm

  • Weight 2.5 kg

Oscilloscopes Accessories

123-6471 - black soft carrying case

Typical Applications

Digital oscilloscopes are a complex and multi-functional electronic laboratory instrument used to capture, process, display and analyse the waveform and bandwidth of electronic signals. DSO versions have a memory to store waveforms and display them over a period of time. Oscilloscopes are used in a wide range of industries e.g.

  • Educational laboratories

  • Electronics troubleshooting and measurement

  • Embedded electronics

  • Mixed-signal and video designing

  • Automotive electronics

FAQs

Are calibration options available for this series?


Yes, calibration versions are available for some markets.

Supplied with

Passive probe 1:1/10:1 (x2), USB cable, quick start guide, certificate of calibration, quality certificate, power cord, CD (includes user manual and EasyScopeX software)

Calibration Options:

123-6603 (Non-calibrated)
123-6602 (RSCAL)
123-6603 (UKAS)

RS Pro

Техническая спецификация
pdfDatasheet
pdfRSDS1000 Series Digital Oscilloscopes Datasheet
pdfRSDS1000 Series Digital Oscilloscopes User Manual (de/en/es/fr/it)
Время нарастания:
<7ns
Источник питания:
Mains
Калибровка:
RSCAL
Категория безопасности уровня:
CAT I, CAT II
Количество каналов:
2
Максимальная вертикальная чувствительность:
10V/div
Минимальная вертикальная чувствительность:
2mV/div
Минимальное время базы:
5ns/div
Полоса - ширина:
50MHz
Размер экрана:
177.8mm
Разрешение по вертикали:
8 bit
Серия:
RSDS1000
Тип дисплея:
TFT LCD
Тип осциллографа:
Bench
Форма осциллографа:
Digital Storage
Цифровой/аналоговый:
Digital
Частота дискретизации Random:
50 (Equivalent) G samples/s, 500 (Real Time) M samples/s
