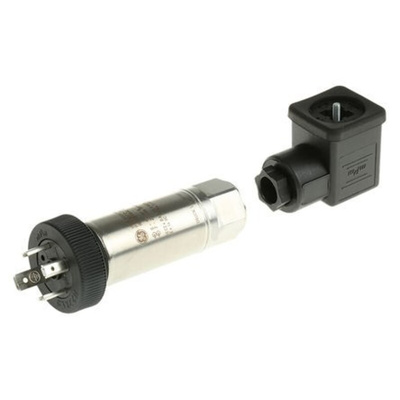

X5072-TB-A1-CA-H1-PA 16.0 bar G, Druck Pressure Sensor for Fluid , 16bar Max Pressure Reading Analogue-RSCAL, Датчик давления

1236659
Номер производителя: X5072-TB-A1-CA-H1-PA 16.0 bar GПроизводитель: Druck
Цена за шт.
54144.00 руб. *

Срок поставки: 4-6 недель

+

* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

Druck UNIK 5000 Pressure Sensing Platform

Introducing Druck's UNIK 5000 pressure sensing platform, a range of sensing components that are ideal for measurement and control solution. The pressure sensing platform allows users to seamlessly build up their own sensor which can cater to their precise requirements. The UNIK 5000 pressure sensing platform offers high performance, configurable solutions for pressure measurement with the series employing modular design and lean manufacturing techniques. Each component from the UNIK 5000 platform creates a custom-built sensor, made up of Druck's standard components.

Features & Benefits

• The standard components, when formed and built create a bespoke sensor the user. This means that users have the capability to fast, efficiently, and simply manufacture sensors according to their own requirements
• Each UNIK 5000 is a bespoke pressure sensing solution
• Field-proven silicon technology
• Large ranges of mbar starting from 70 mbar (1 psi) to 700 bar (10,000 psi) - depending on the choice of components from the range
• Comprised of a hardwearing and aesthetically pleasing stainless steel
• Frequency response to 5 kHz
• High overpressure capability
• Multiple electrical & pressure connector options
• Depending on the components used to create the pressure sensor the UNIK 5000 has an operating temperature that ranges from -55 to 125°C (-67 to 257°F)
• mV, mA, Voltage and configurable voltage outputs
• Accuracy to 0.04% Full Scale (FS) Best Straight Line (BSL)

What is a pressure sensor and how does it work?

A pressure sensor is a device that senses applied pressure of gases and liquids within a certain application, the output of the measurement is then converted into an electrical signal which reflects the amount of pressure applied.

Druck PMP/PTX Transmitters & Transducers

The PMP/PTX 1440 range of Transducers/Transmitters have been designed for the use with aggressive media found in many industrial applications.

Техническая спецификация
pdfUNIK 5000 Pressure Sensing Platform
pdfMachine Guarding and Safety Range Overview
Аналоговый выход:
4 → 20 mA
Время отклика:
10 ms
Измерение информации:
Fluid
Калибровка:
RSCAL
Максимальное воздействие считывания:
16bar
Максимальный ток:
20 mA
Материал корпуса:
Stainless Steel
Напряжение питания:
7 → 28 V
Сертификация опасной зоны:
ATEX
Соединение с процессом:
G1/4
Степень защиты IP:
IP65
Тип воздействия считывания:
Gauge
Тип выхода:
Analogue
Точность:
±0.2 %
Электрическое соединение:
DIN 43650 Type A
